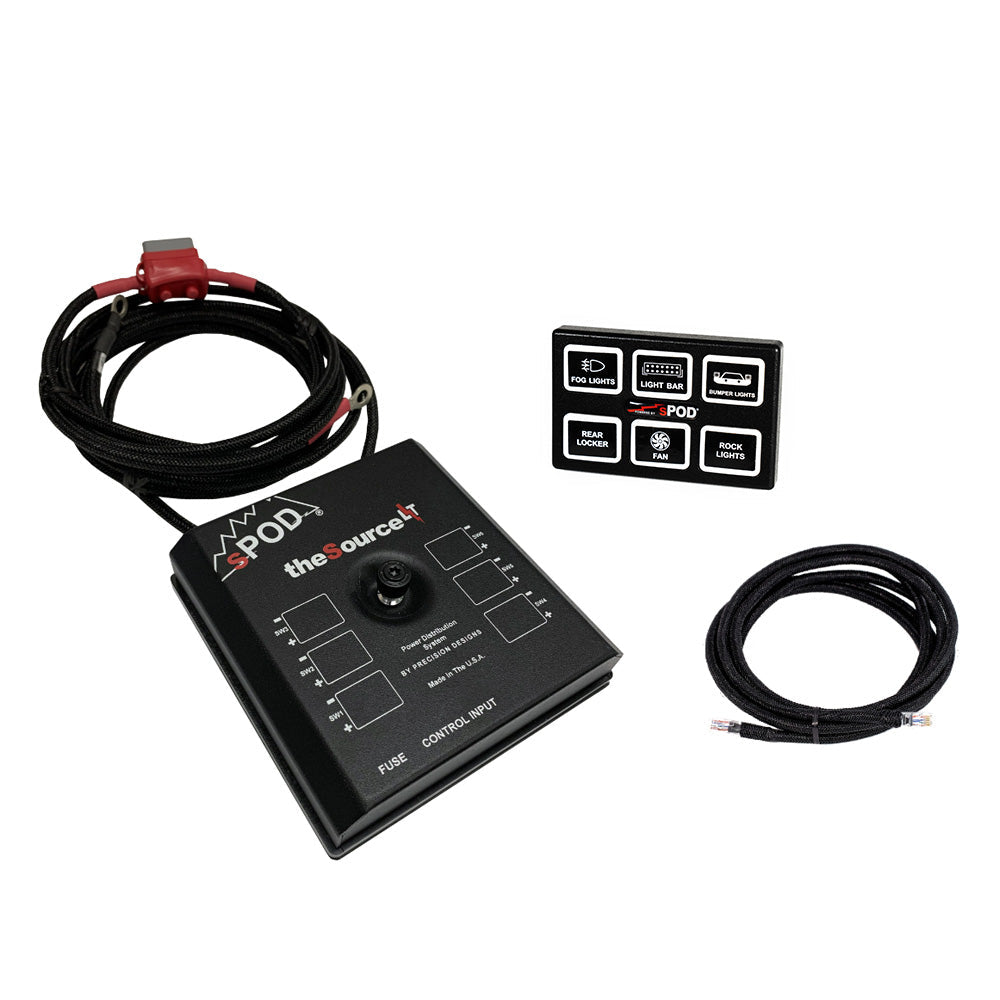

SourceLT w/ Mini6

Take Control of Your Accessories

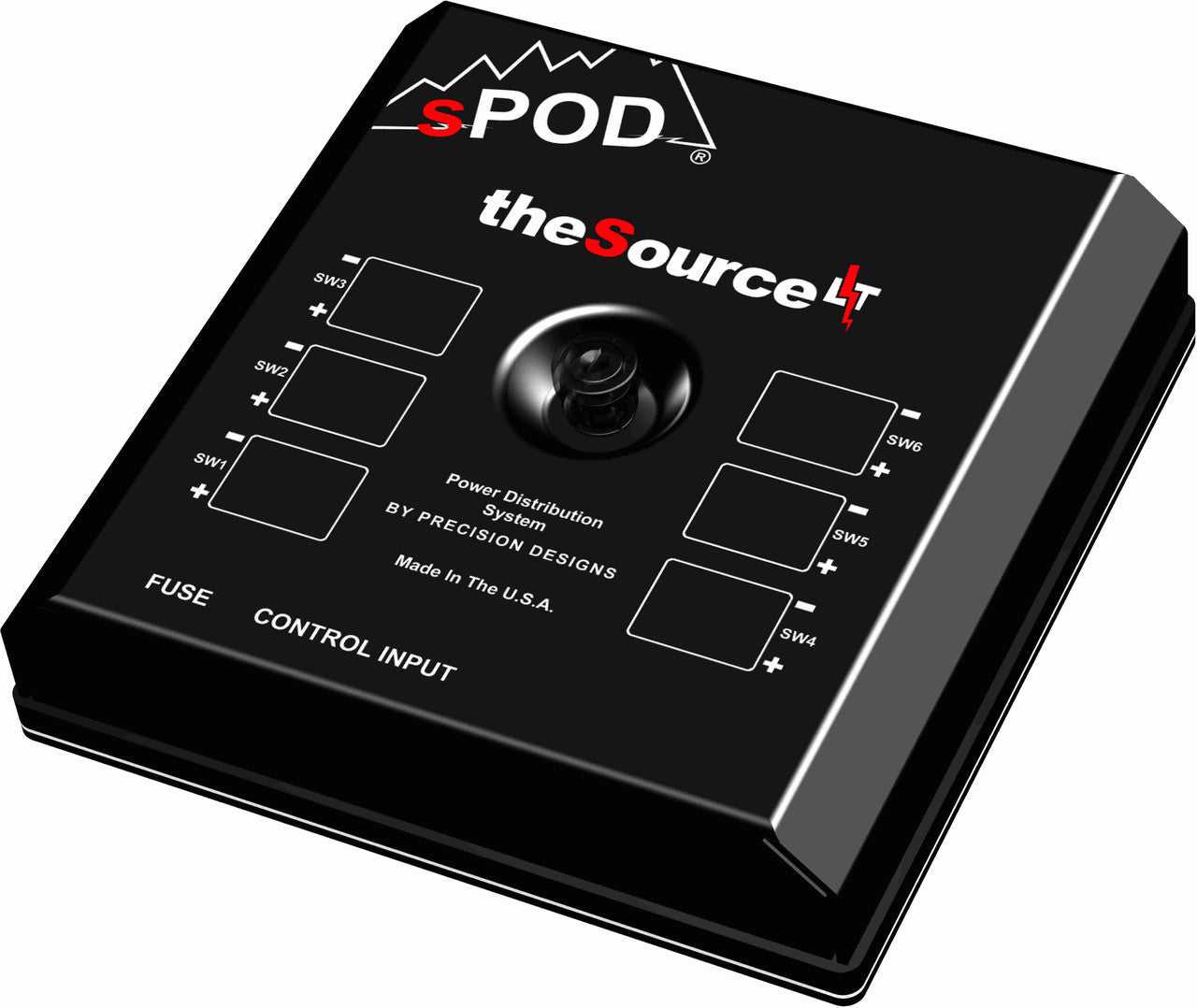

The SourceLT will save hours of wiring & installation time! It is a small, solid-state 6-circuit control system that provides a clean (one cable into the cab!) and safe way to power and control 12VDC accessories. Due to the small footprint of the SourceLT, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.

Features

• 6 circuits rated at 30 amps at 12.5 VDC per circuit
• 12-position terminal block (easily attach accessories)
• Controller cable (10 foot) for simple plug-n-play connectivity to the switch controller
• Integrated low voltage cutoff (LVCO) battery protection w/ optional override
• Self-healing fault protection circuits (from 1.5 to 30amps)
• Current-sensing MOSFETs are controlled by a microprocessor (no fuses & no relays)
• 100amp in-line fuse
• Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
• Operates on 12VDC
• Built-in Bluetooth capabilities for remote control
• Protection against: overheating, over-current, shorts, reverse polarity and field collapse
• On-demand wireless software updates/upgrades

HARDWARE

• Powder-coated steel base w/ built in hardware
• Silicone gasket for weatherproofing
• Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for placement of supplied legends
• Universal & vehicle specific mounting options
• Robust insulated base and cover

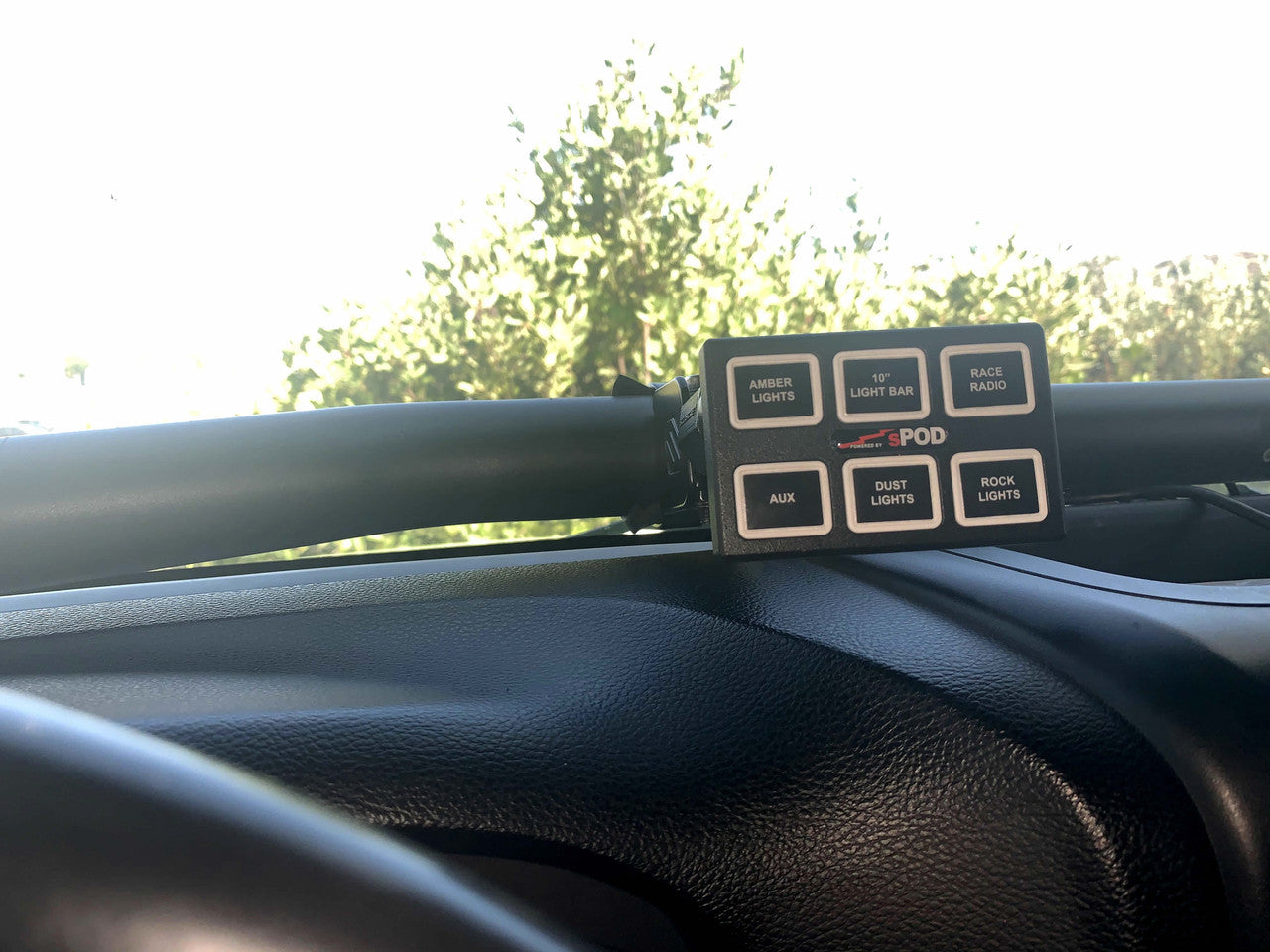

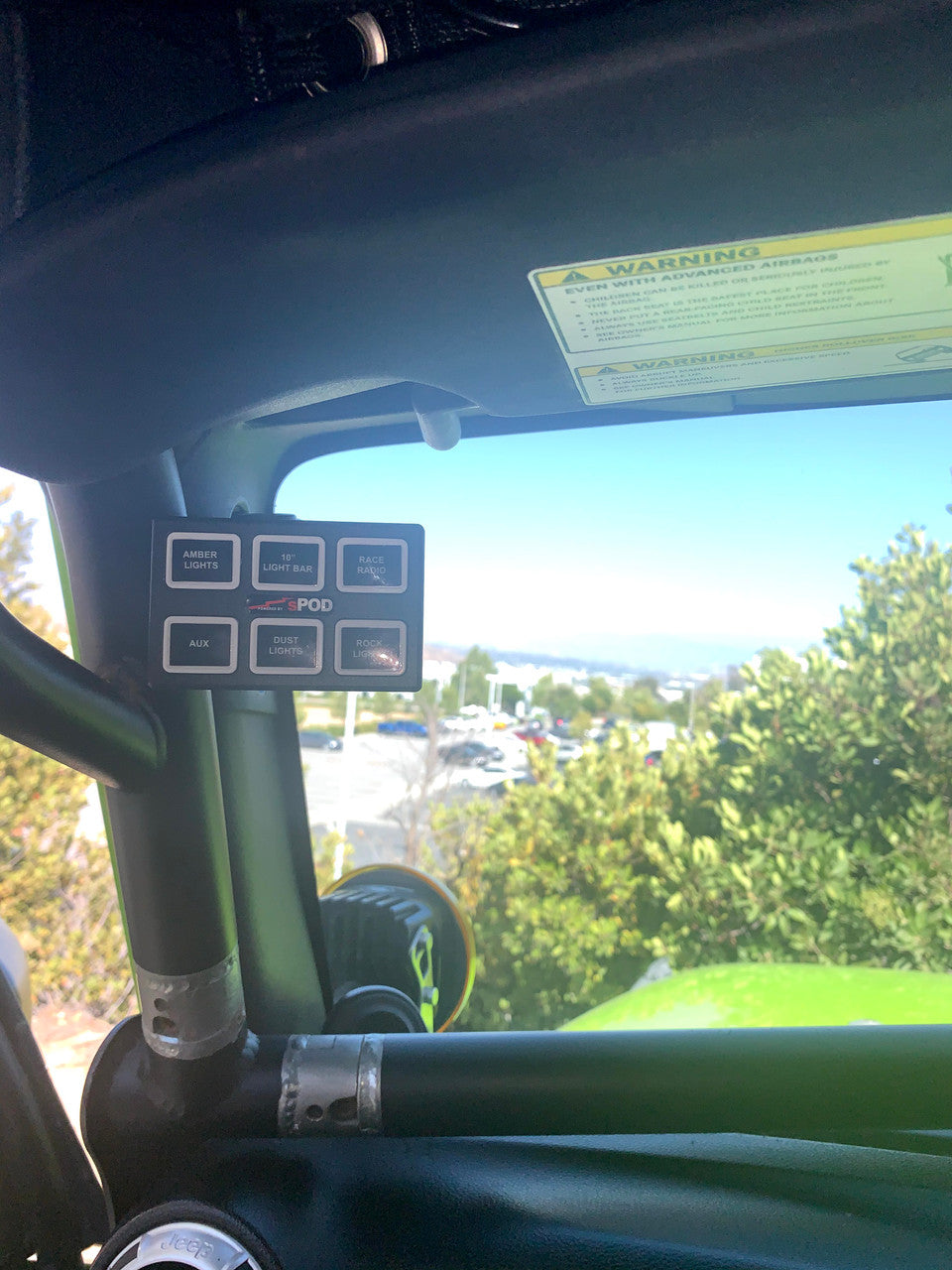

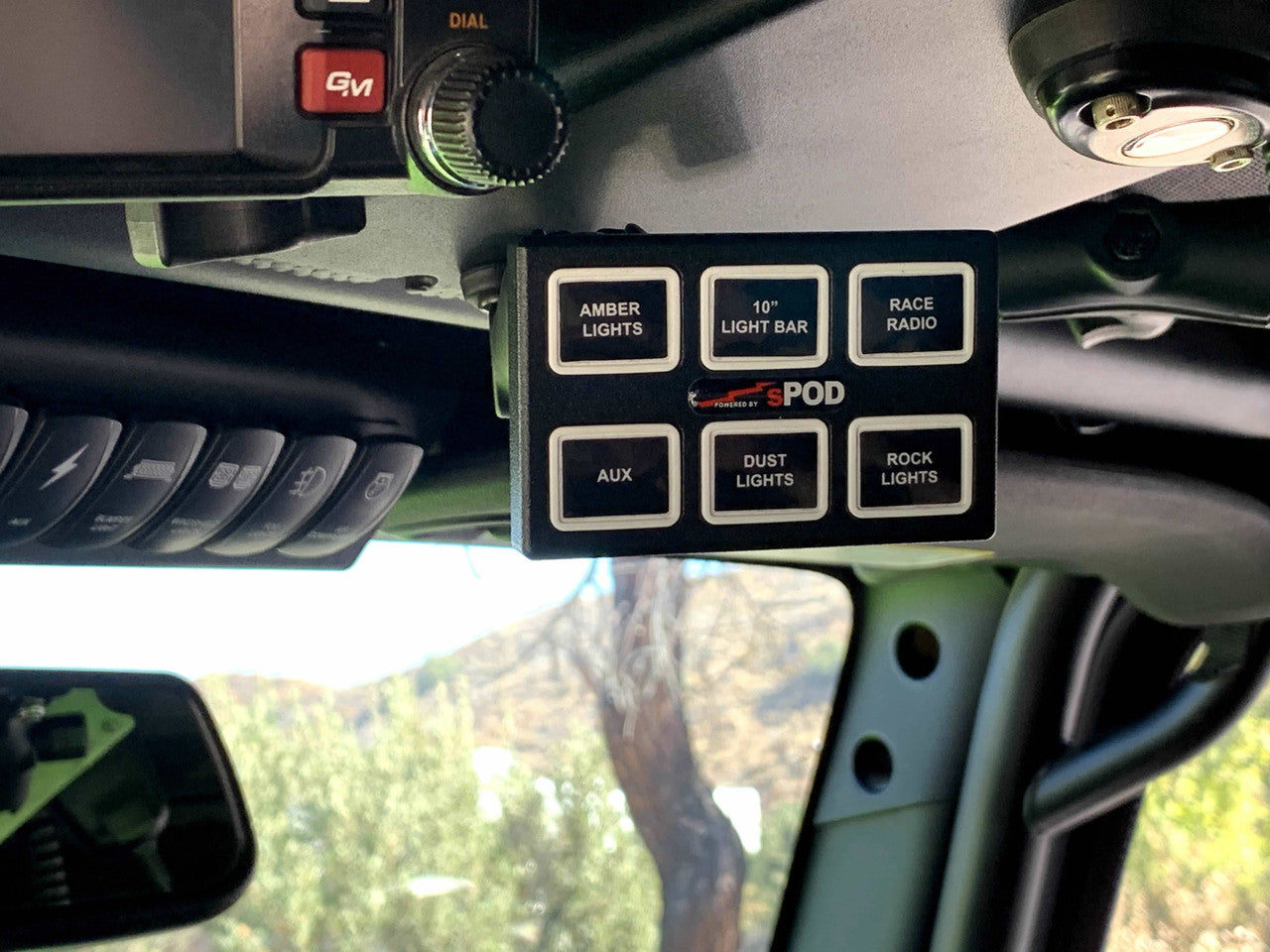

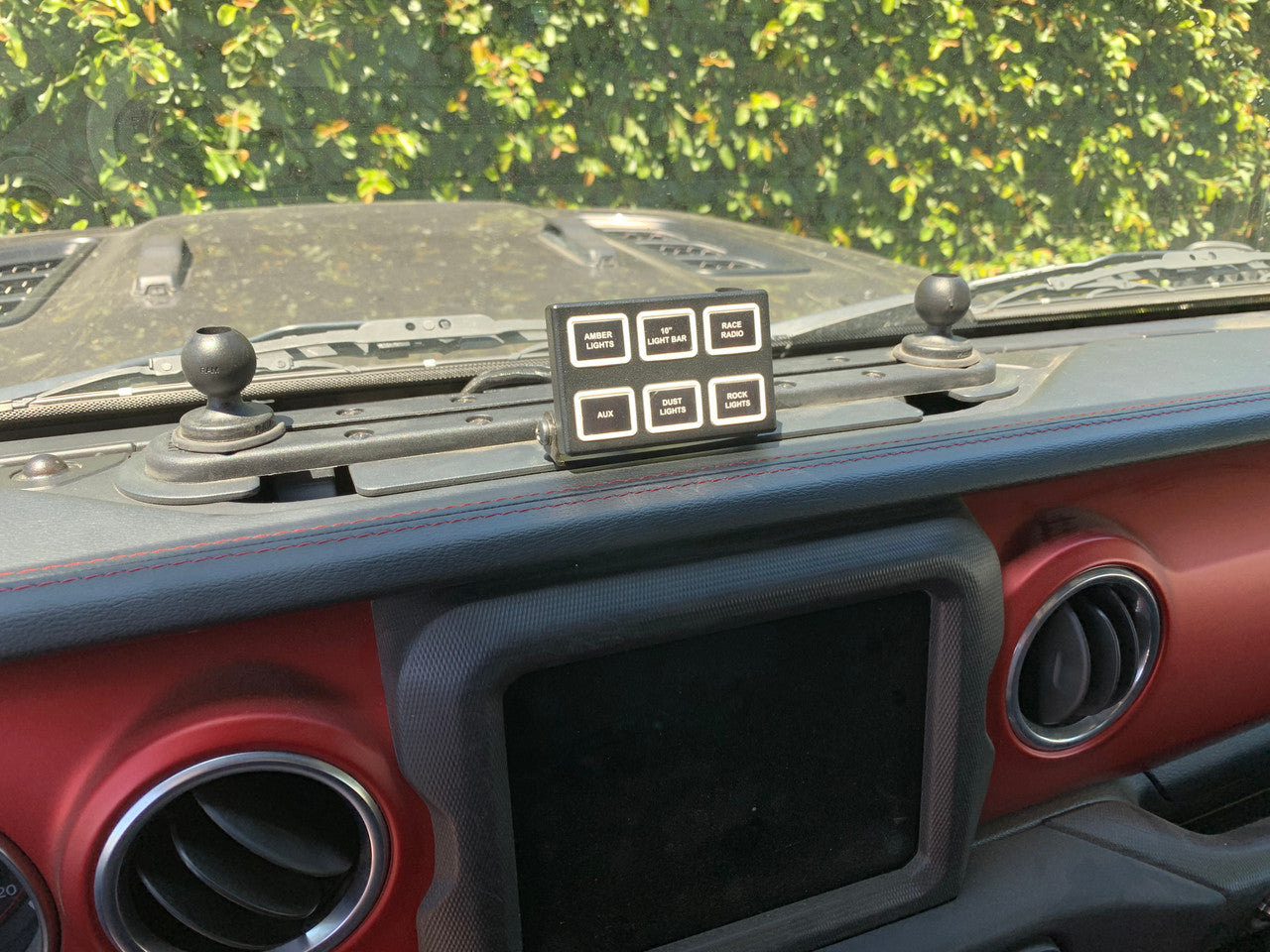

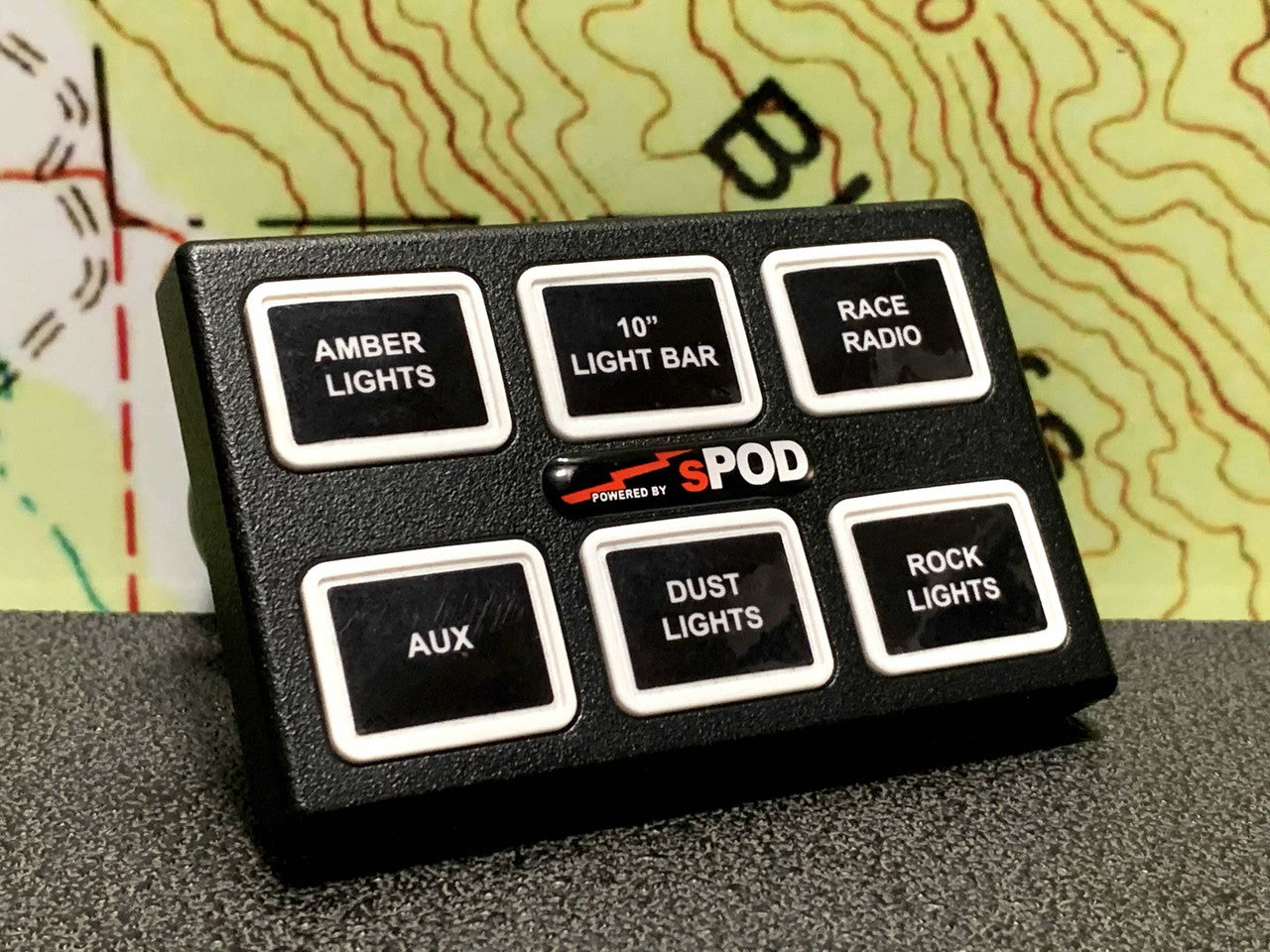

MINI6 CONTROL PANEL

• Panel Dimensions: 2.062" W x 3.260" L x .375" D
• Programmable modes: momentary / latch and backlight brightness level
• Visual feedback circuit ON indicator light for each button
• Includes one sheet of 72 standard legends
• Power-saving Deep Sleep Mode: Deactivates after 6 hours of inactivity
• Silicone buttons for easy touch activation
• Can run in conjunction with a 6-switch panel
• CAT-6 Ethernet connected (up to 25 feet from SourceLT)

FEATURES AVAILABLE THROUGH sPOD MOBILE APP (free)

• Dimming
• Strobe
• Flash
• Momentary
• Switch Linking
• On-Road and Off-Road mode of operation

BLUETOOTH REQUIREMENTS

• Access to iTunes or Google Play Store to download the sPOD app
• Bluetooth 4.0 compatible
• Compatible with Android devices running 8.0 Oreo (API 26) or later
• Compatible with iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad mini
• Must have existing sPOD system
