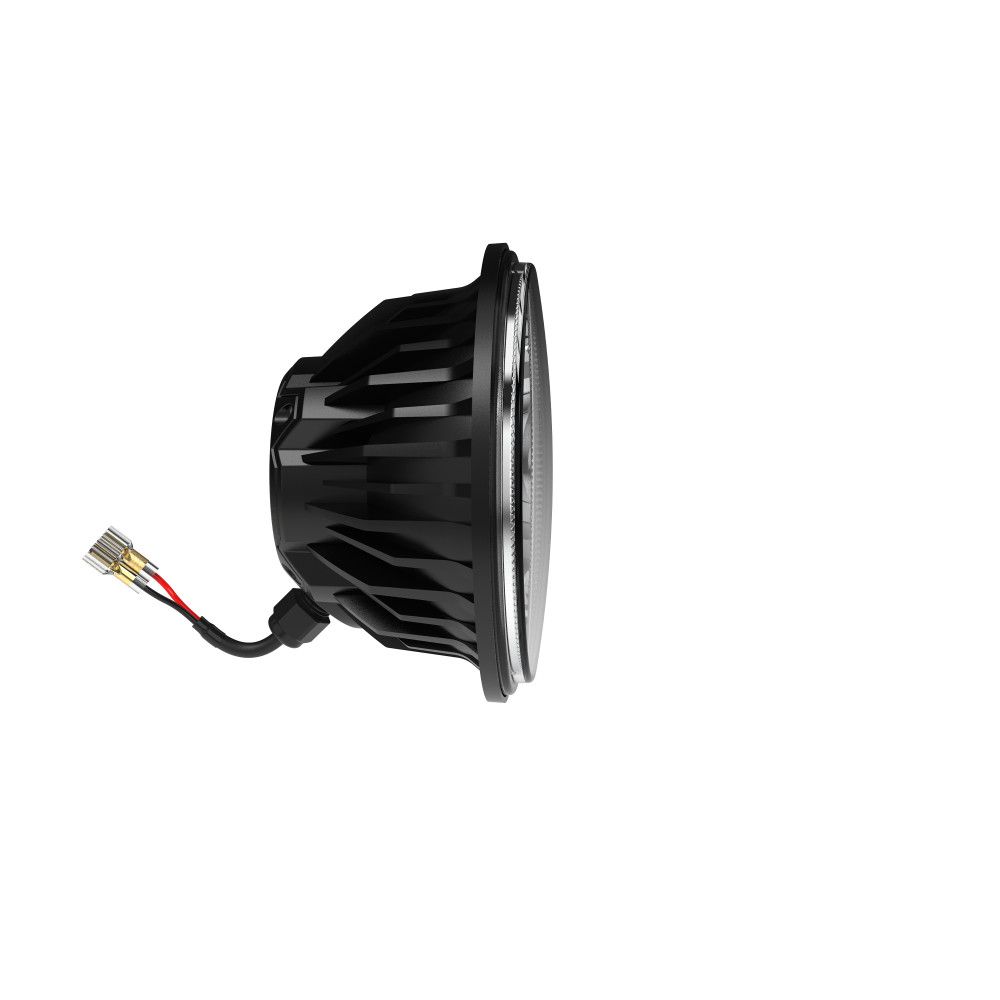

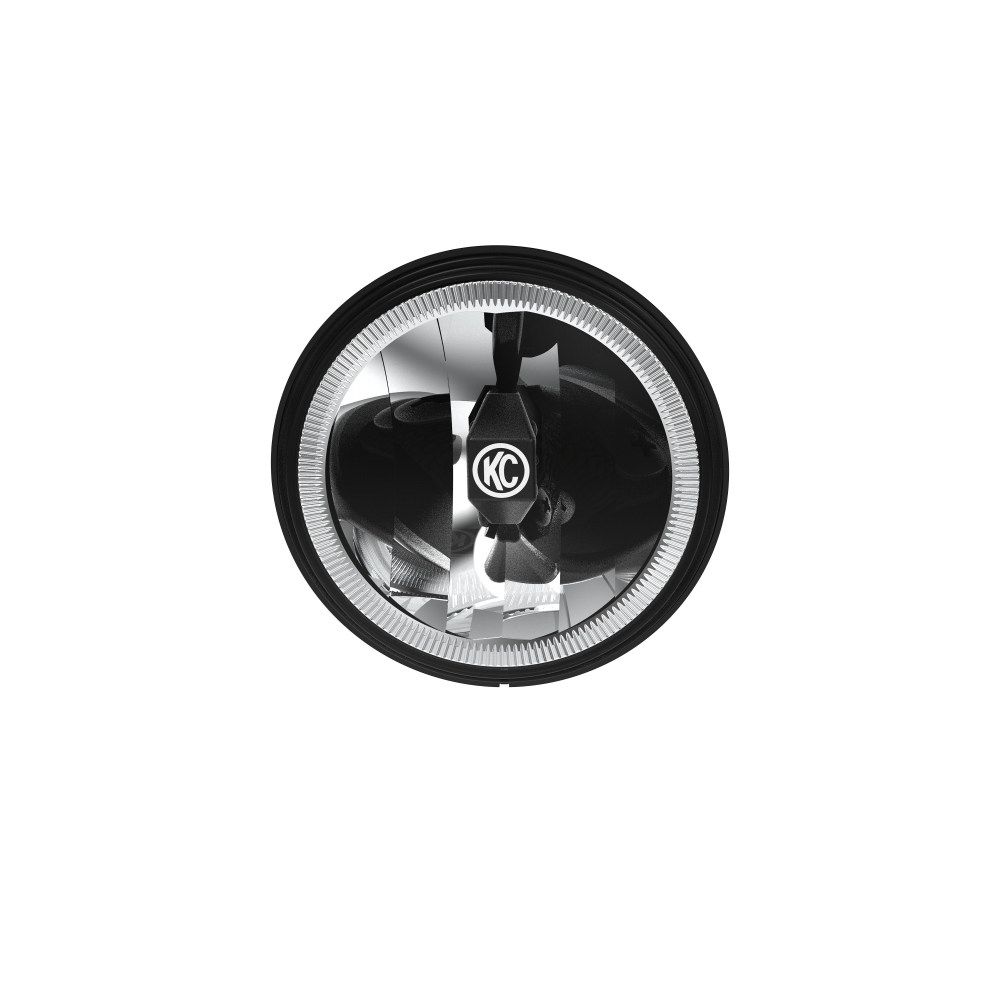

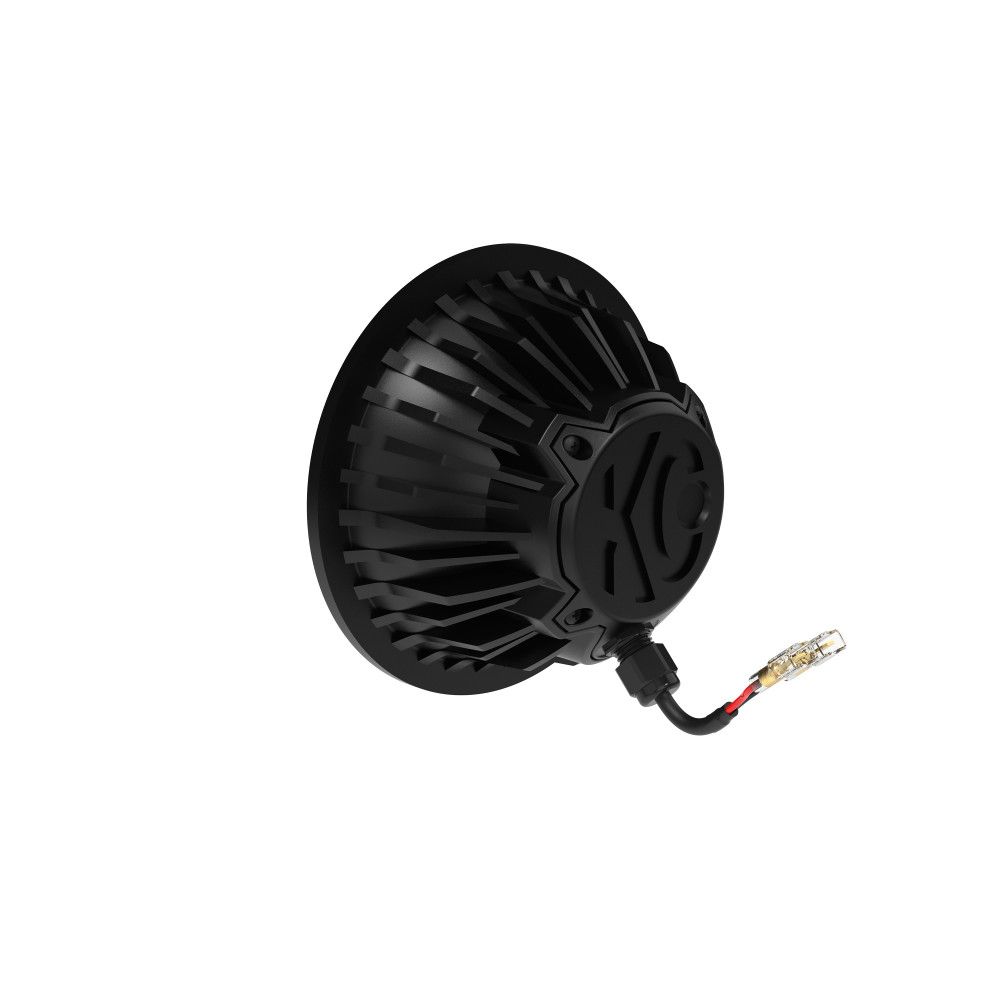

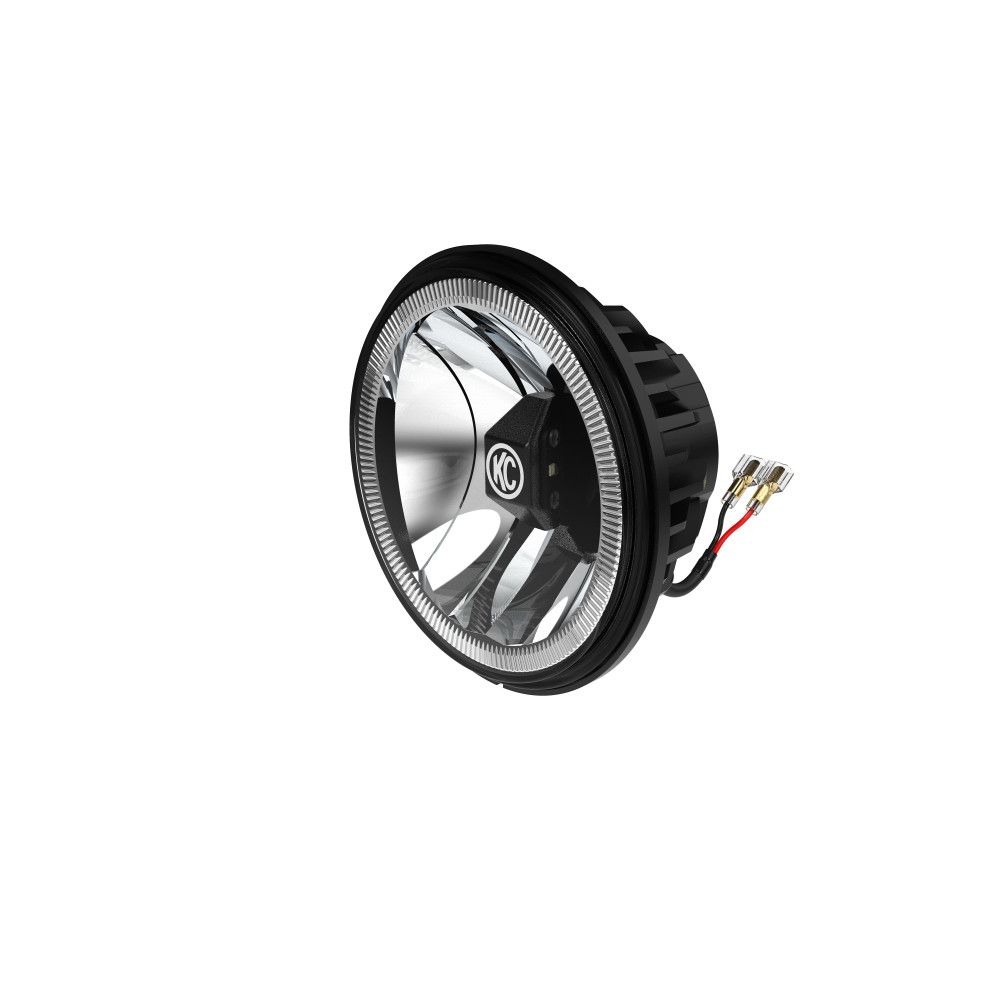

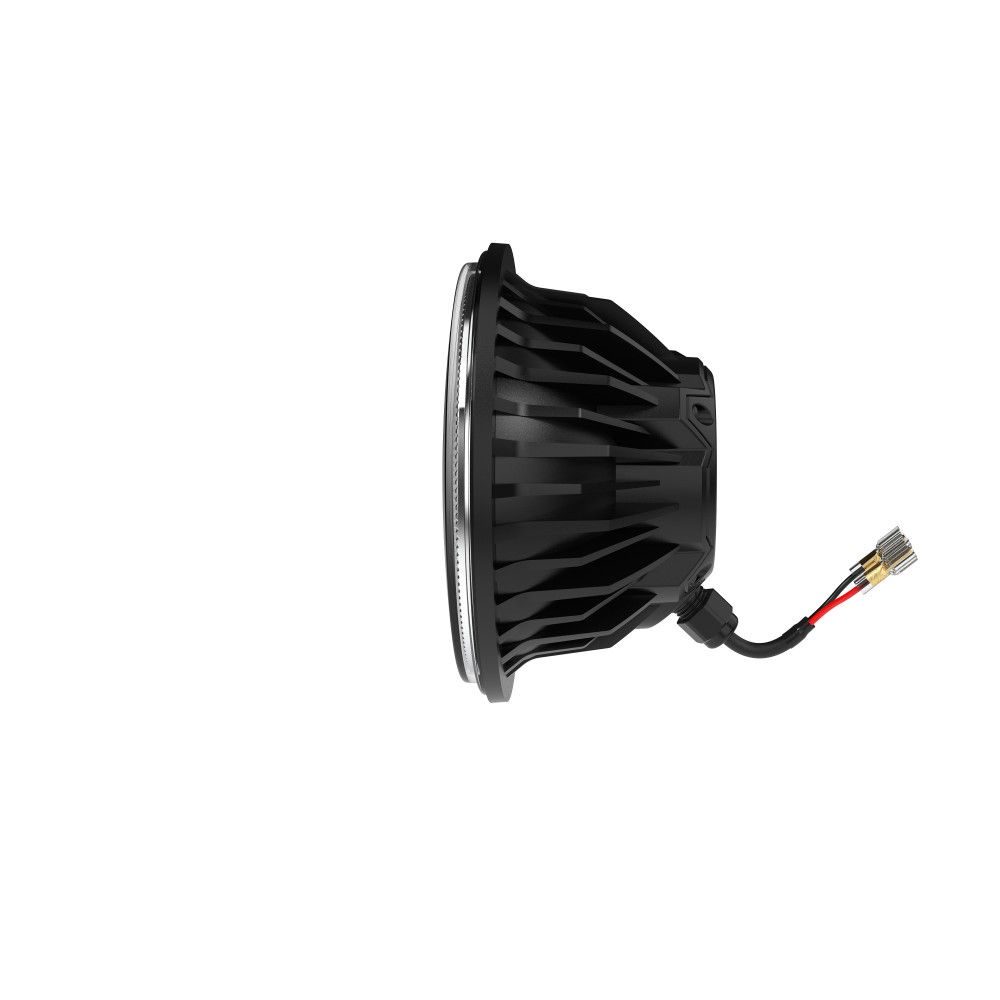

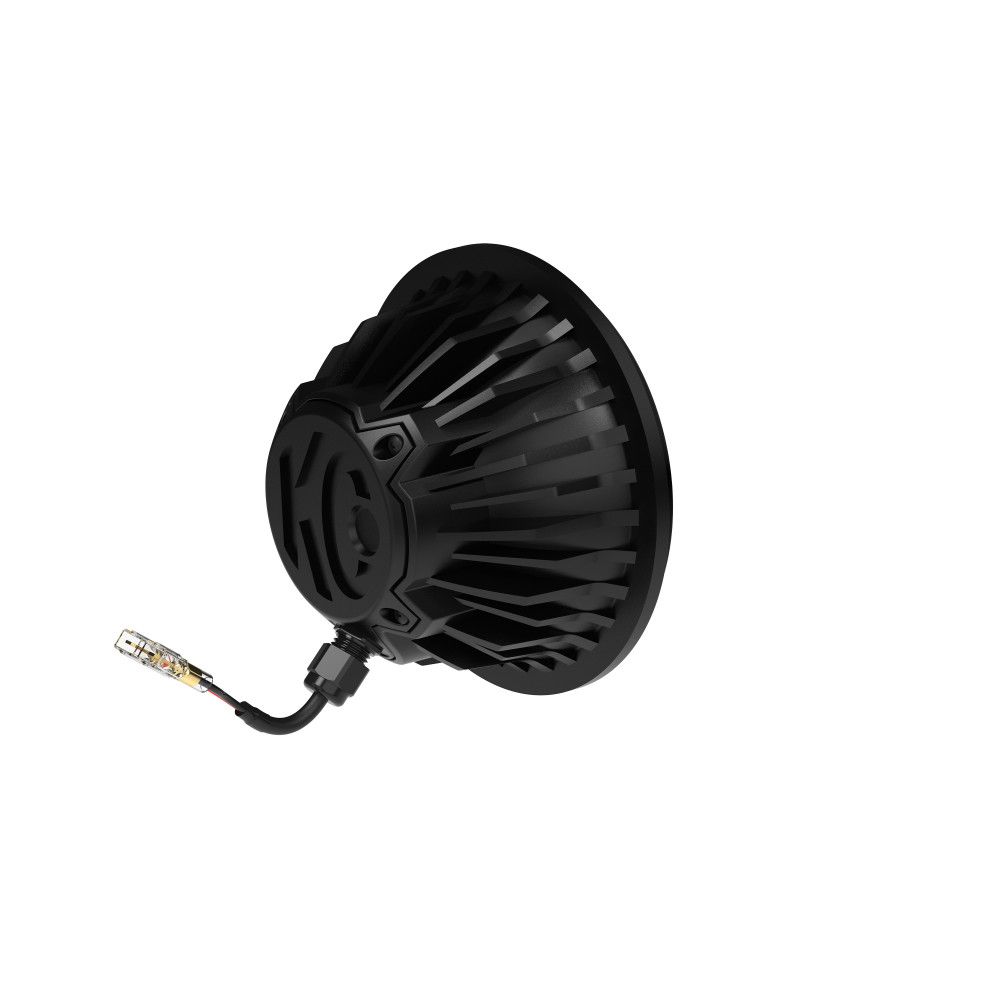

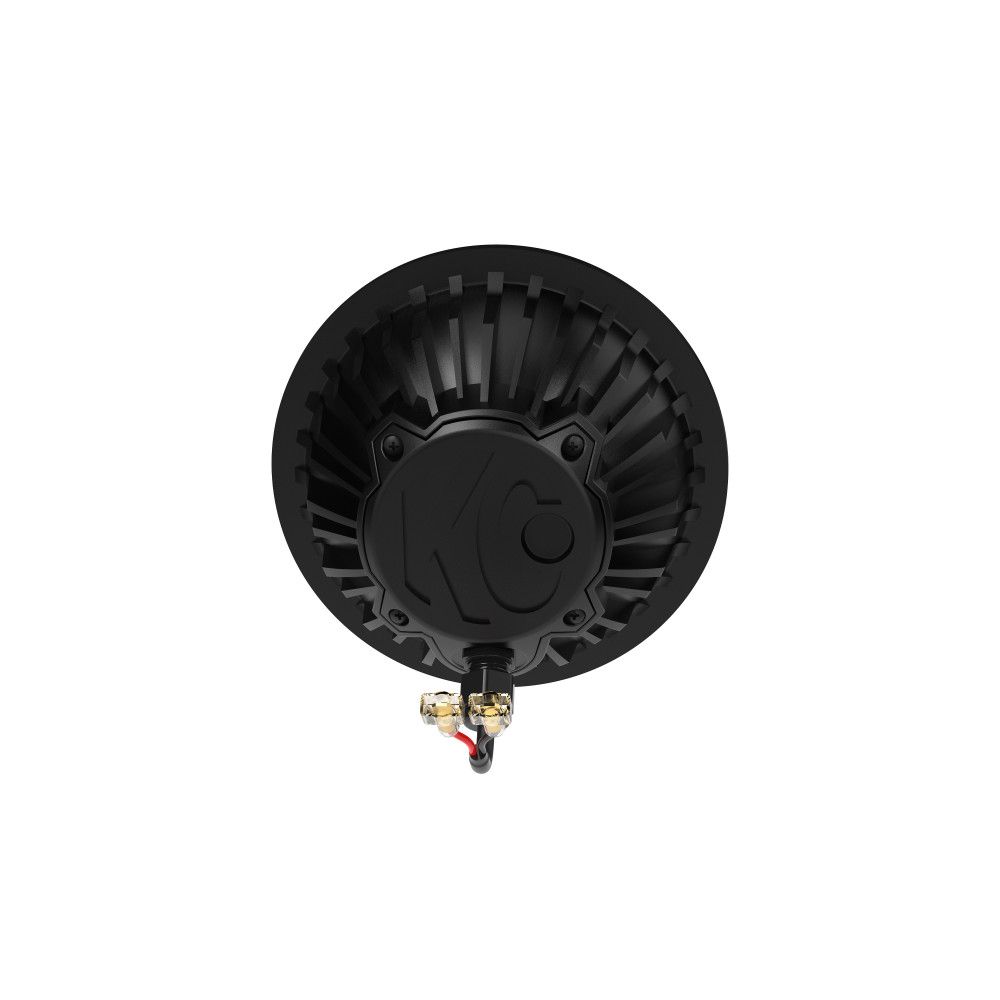

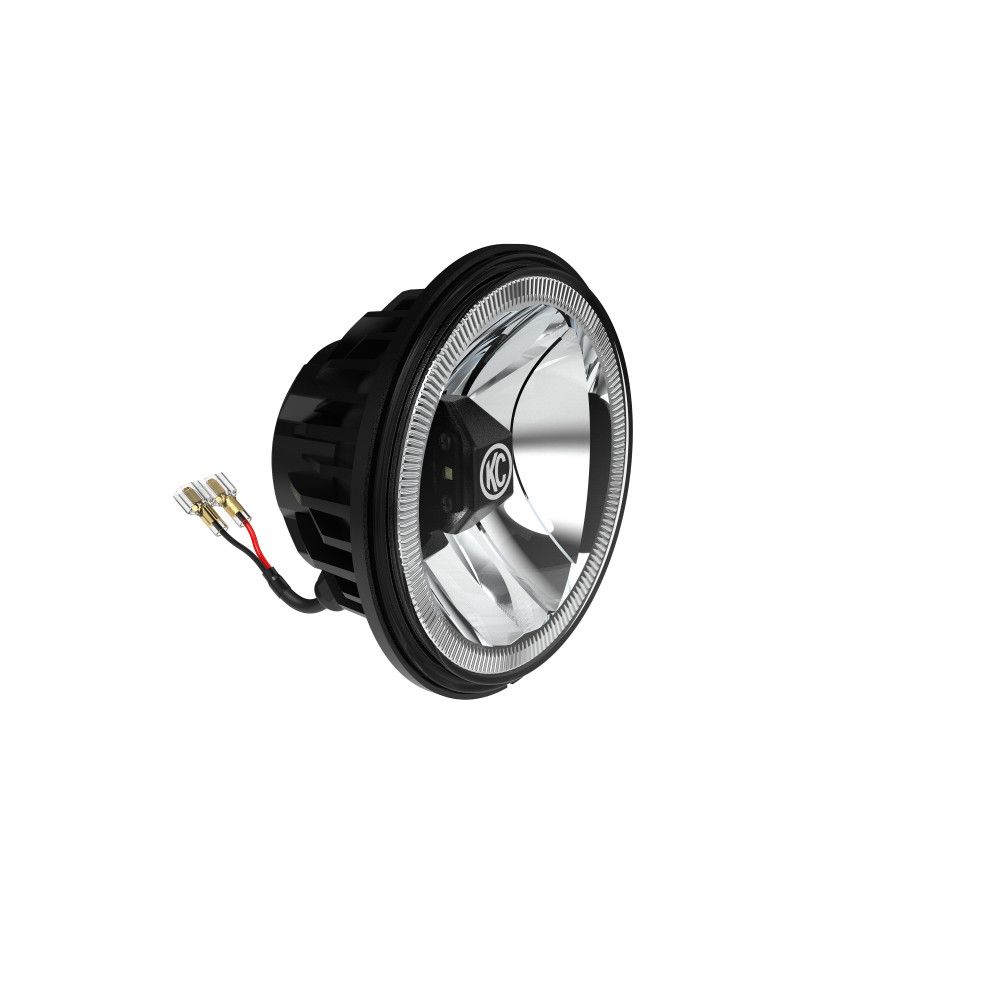

KC HiLites Gravity® LED G6 Optical Insert Single Front View
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single Front View
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single
KC HiLites Gravity® LED G6 Optical Insert Single

KC HiLites Gravity® LED G6 Optical Insert Single

$150.00
/
Shipping calculated at checkout.
Beam Pattern
  • In stock, ready to ship
  • Inventory on the way
Overview:
KC Hilites 42133 6" Gravity LED Insert is used as a replacement or upgrade to existing 6" Halogen Daylighter lights. Features efficient 5000K CREE LED bulbs in a spot beam pattern, for focused width and distance.

Features:
  • 20W Gravity® LED G6 Optical Inserts
  • Aluminum Housing
  • Hard Coated Polycarbonate Lens
  • Spot Beam Pattern
LIGHT PERFORMANCE (PER LIGHT):
  • Raw Lumens: Spot- 2,300 lm
  • Compliance: Driving Beam meets SAE J581 & ECE-R112 Street Legal
  • Lux @10 Meters: Spot- 2,150 lx
  • Candela: Spot- 215,000 cd
  • Beam Distance (Meters): Spot- 972m
SPECIFICATIONS (PER LIGHT):
  • Wattage: 20W
  • LED Source: CREE XPL HD LED
  • Amp Draw: 1.67A
  • Voltage: 9V-32V
  • IP Rating: IP68
  • Product Dimensions: W - 5.68" x H - 5.66" x D - 3.32"
GRAVITY® EXTREME OUTPUT AND EFFICIENCY:

Gravity® G6 LED optical inserts deliver an incredible 2,150 lx @ 10m and Spot Beam distance of 972 meters. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors, capturing all the light and projecting it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES:

Spot Beam- Provides focused bright light for maximum forward distance and high-speed visibility.

UPGRADE YOUR HALOGENS TO LED:

KC's Gravity® G6 LED optical inserts allow you to upgrade older KC 6" Halogen Daylighter, as well as custom 6" openings with the latest LED technology.

STRENGTH & DURABILITY:

With an IP68 rated sealed aluminum reflector housing and durable polycarbonate lens to create a self-contained LED light for maximum reliability and durability.

Spec:
  • Light Technology: LED
  • Location on Vehicle: A-Pillar / Ditch, Bumper, Overhead
  • Lumens: 2,300 lm
  • Beam Distance: 395m (Wide-40) 972m (Spot) 724m (Driving)
  • Total Wattage: 20W
  • Voltage: 9V-32V
  • Amp Draw: 1.67 a
  • Beam Pattern: Spot/Driving/Wide-40
  • DOT Compliant: No
  • SAE/ECE: No
  • Lens Color: Clear
  • Light Color: White
  • Product Dimensions: W - 5.68" x H - 5.66" x D - 3.32"
  • Finish: Black
  • Color: Black
  • In The Box: 20W Gravity® LED SAE/ECE Driving Beam G6 Optical Insert
  • IP rating: IP68
  • Prop 65: No
  • Size: 6"
