KC HiLites Gravity LED G4 Fog Light Pair Pack System | 10-18 Jeep JK

Overview:

Features:

• 2 x 10W 4" Gravity® LED Fog Lights
• Lightweight Magnesium Housing for Maximum Heat Dissipation
• Street Legal 10-24 Jeep JK/JL/JT Applications
• Shatter Resistant Polycarbonate Lens
• Fog Beam Pattern (SAE & ECE Street Legal)

NOTES
-Does not fit Jeep Hard Rock Edition bumper, steel or sport bumpers

LIGHT PERFORMANCE (PER LIGHT):

• Raw Lumens: 866 lm
• Compliance: SAE J583 & ECE-R19 Street Legal
• Lux @ 10 Meters: 150 lx
• Candela: 150,000 cd
• Beam Distance (Meters): 245m

SPECIFICATIONS (PER LIGHT):

• Wattage: 10W
• LED Source: CREE LED
• Color Temperature: 5000K
• Amp Draw: .74A
• Voltage: 9V-32V
• IP Rating: IP68
• Product Dimensions: W - 3.94" x H - 3.94" x D - 3.44"

PARTS INCLUDED:

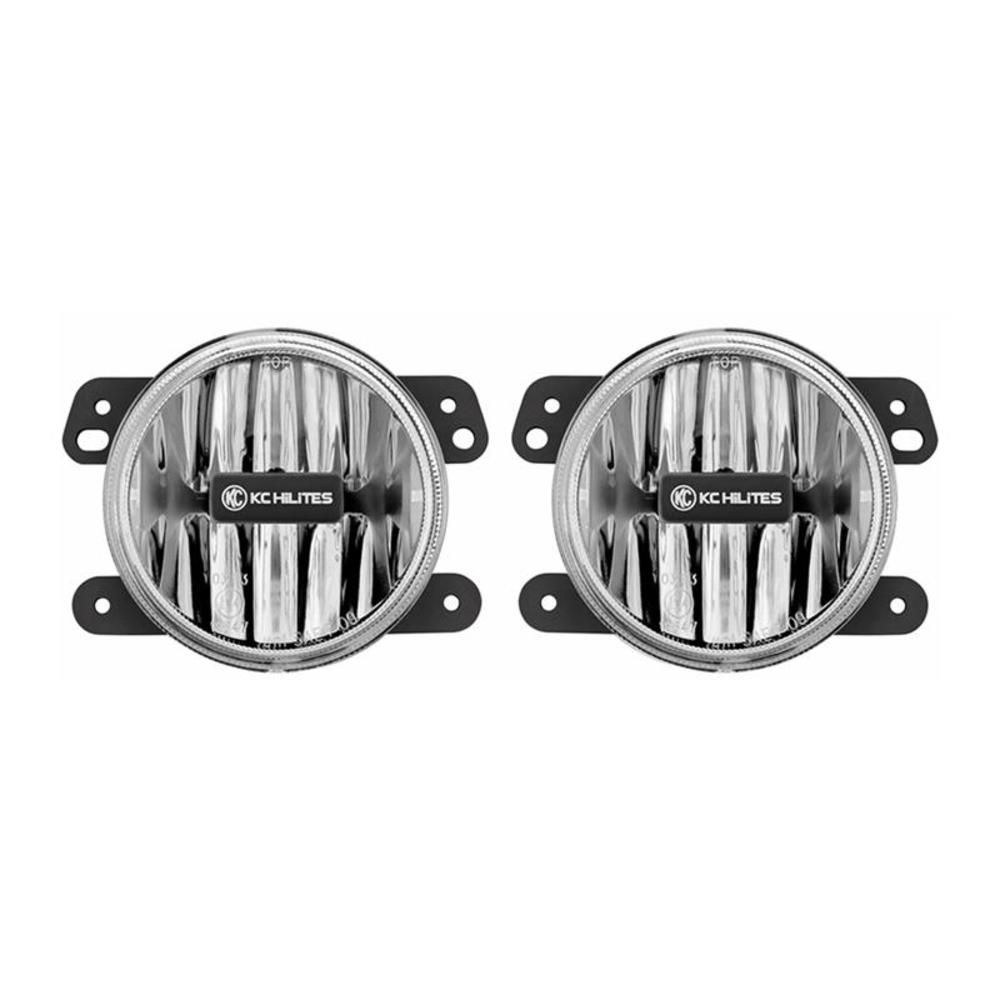

• (2) 10W 4" Gravity® G4 LED Fog lights
• Universal Adjustable Bracket

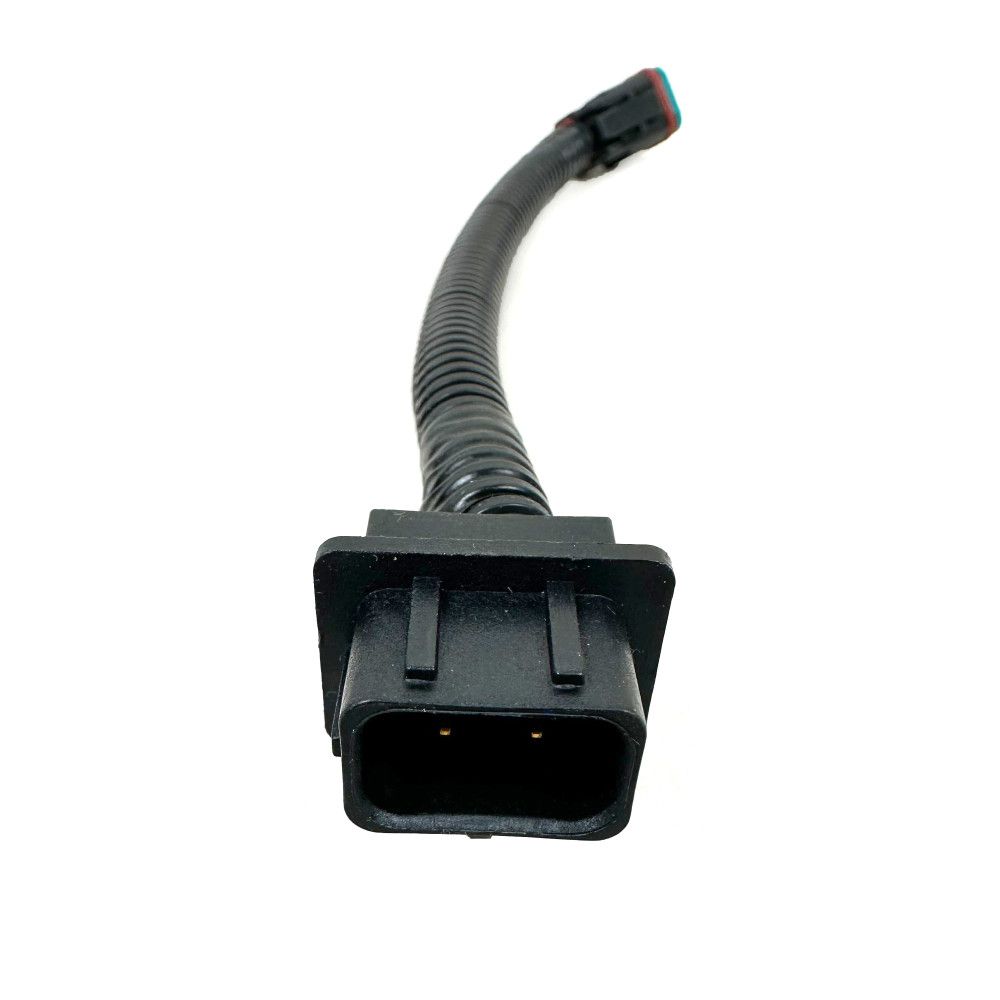

• Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
• 30A LED Switch w/Panel

GRAVITY® EXTREME OUTPUT AND EFFICIENCY:

4" Gravity® LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented GRD system aims LEDs into precision reflectors, capturing all light to project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES:

Fog Beam- Provides a low, wide-angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION:

KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's mounting system bolts directly to OE 10-18 Jeep JK bumper and fog light harness.

STRENGTH & DURABILITY:

Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.

Vehicle Compatibility: Please keep in mind that this Gravity LED FOG pair pack system is not compatible with Hardrock Edition vehicles.

Specs:

• Compliance DOT/SAE/ECE: SAE J583, ECE R19 (Fog)

• Light Technology: LED

• Location on Vehicle: Bumper, Fog Pocket

• Lumens: 866 lm

• Beam Distance: 245 m

• Total Wattage: 20W

• Voltage: 9V-32V

• Amp Draw: 1.67 a

• Beam Pattern: Fog

• DOT Compliant: No

• SAE/ECE: Yes

• Lens Color: Clear

• Light Color: White

• Product Dimensions: W - 3.94" x H - 3.94" x D - 3.44"

• Material: Magnesium Alloy

• Finish: Black

• Color: Black

• In The Box: 2 x Gravity LED™ G4 SAE/ECE Fog Light (Jeep JK 10-18)
• IP rating: IP68
• Prop 65: No
• Size: 4"
