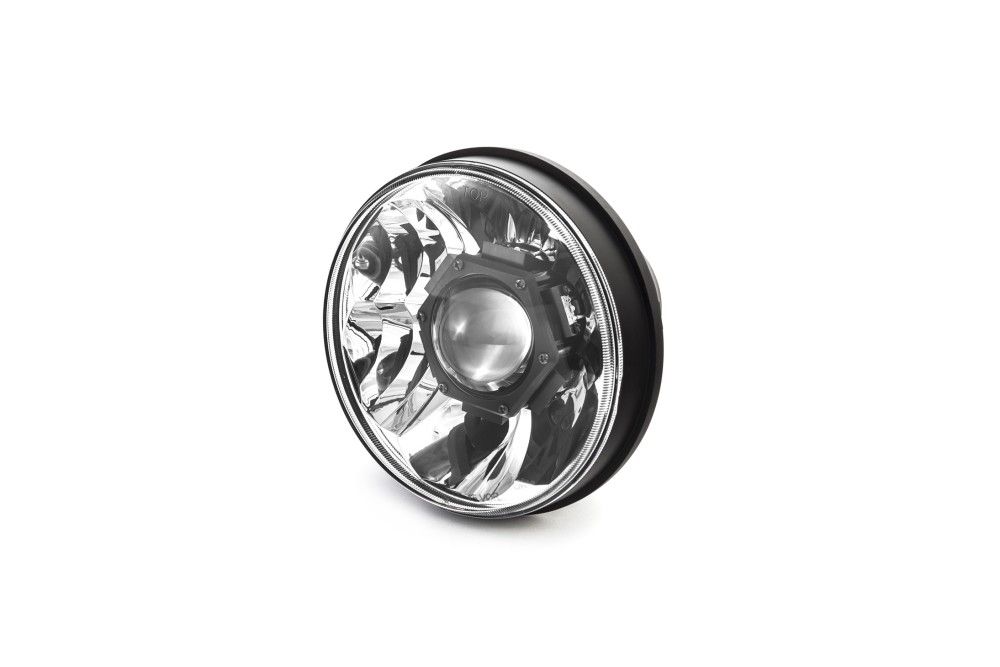

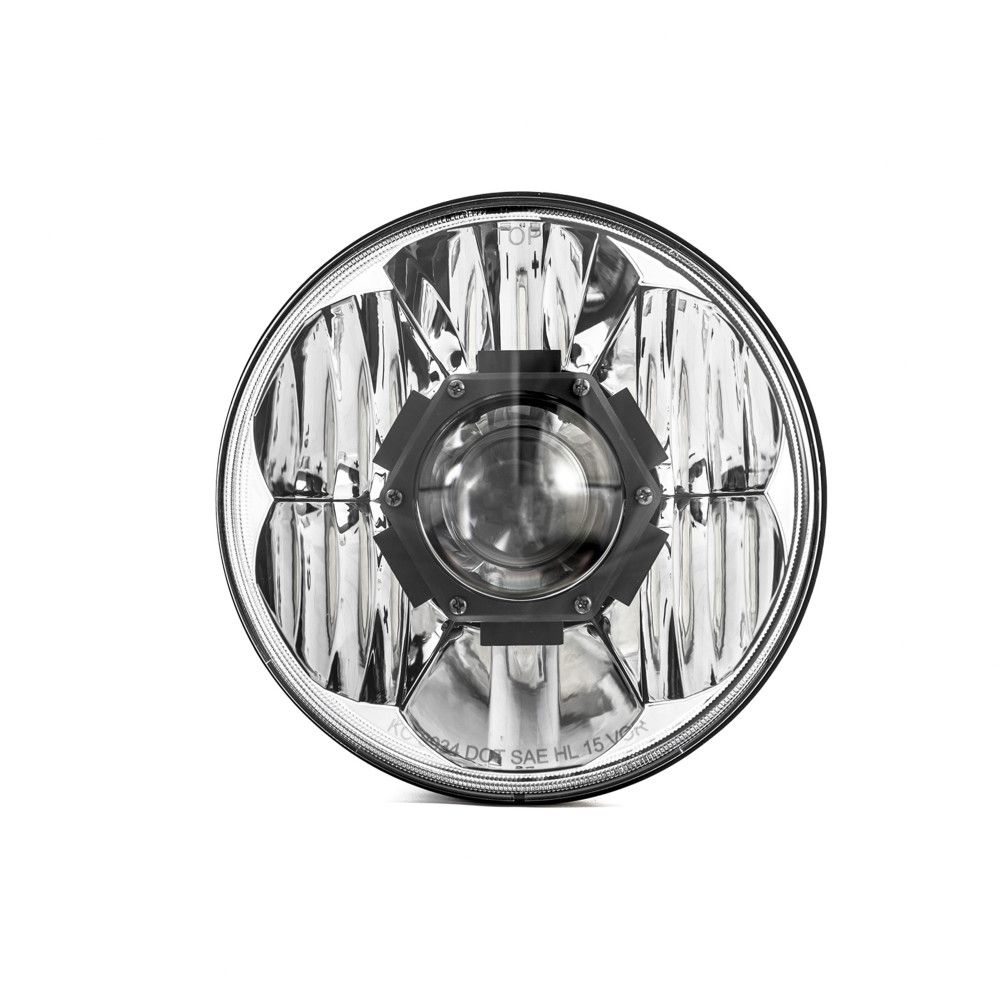

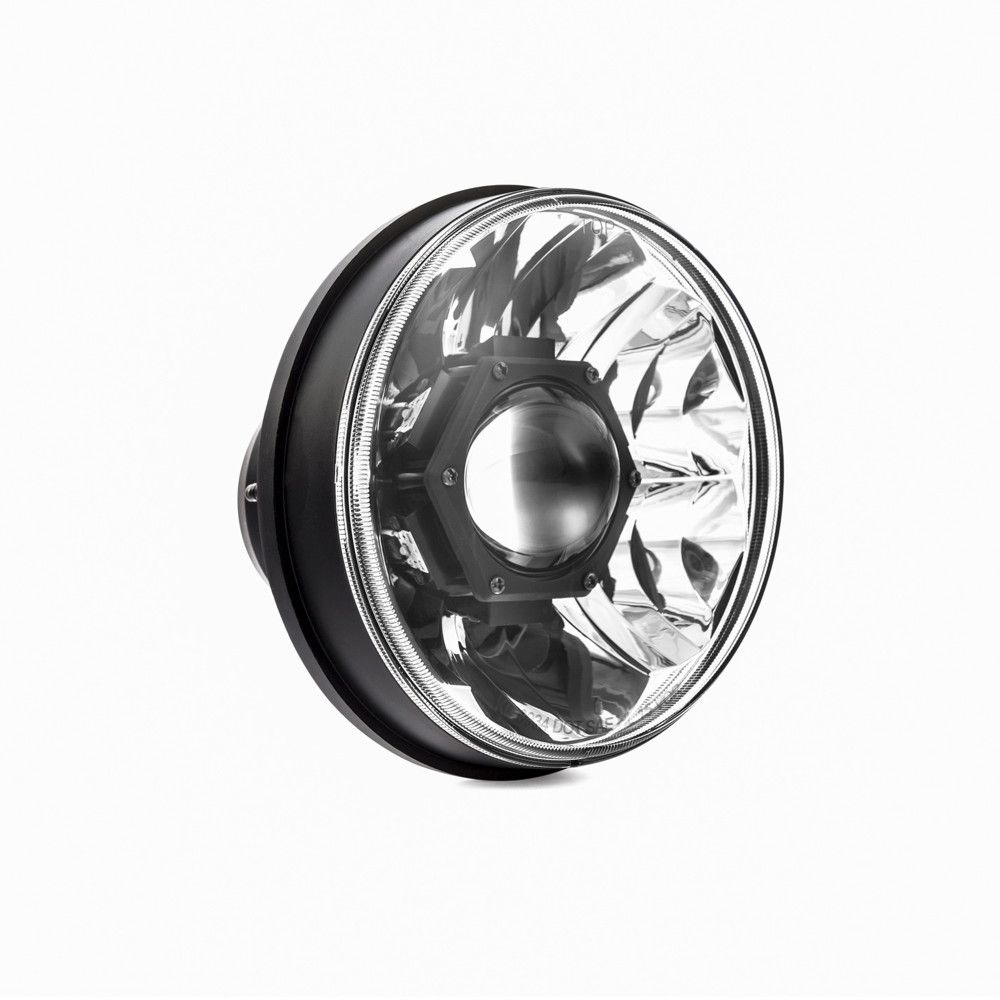

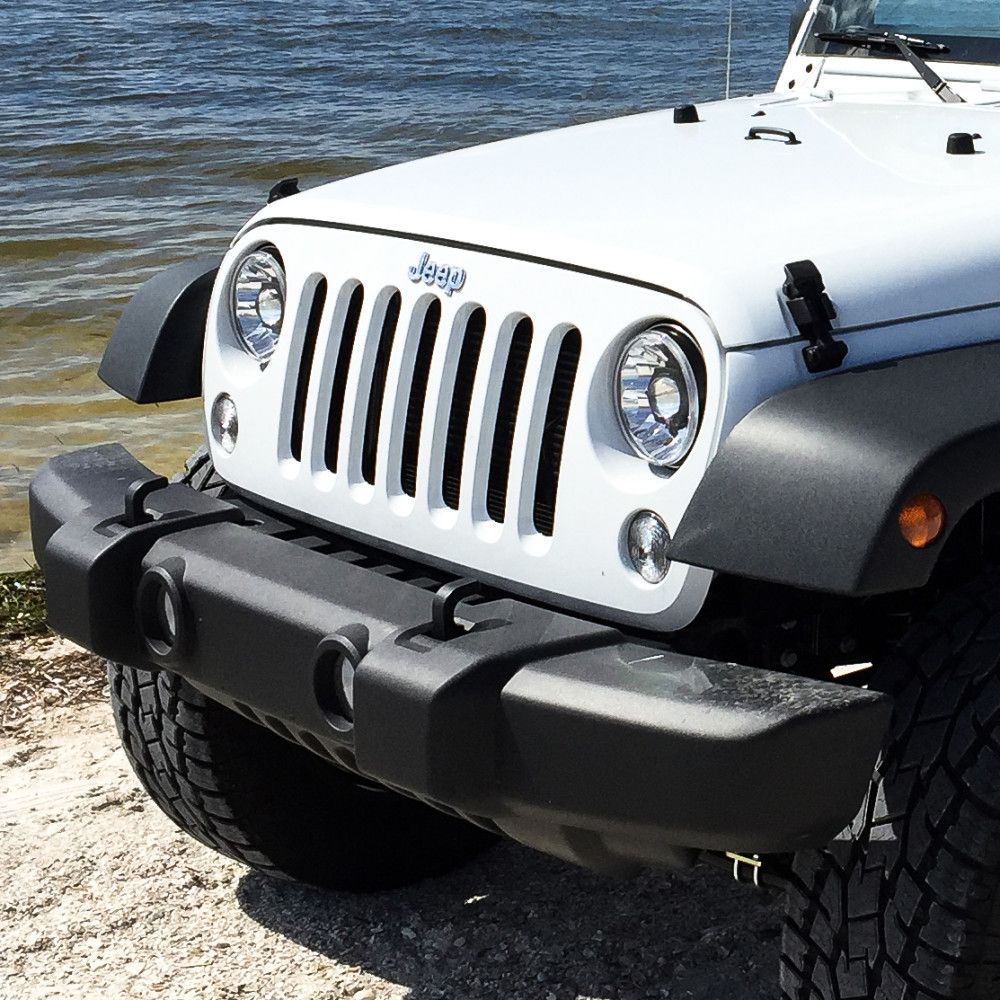

KC HiLites 7" Gravity® LED Pro DOT Headlight | Driving Beam | Pair | 07-18 Jeep JK

Overview:

Features:

• 40W Gravity® LED Pro 7" Headlights
• Patented Gravity® Projector Optics(GPO)
• Hard Coated Polycarbonate Lens
• Precision Die-Cast Aluminum Housing
• DOT Compliant Low and High Beam with built-in Daytime Running Light (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
• KC Engineered Polished Reflector Optics

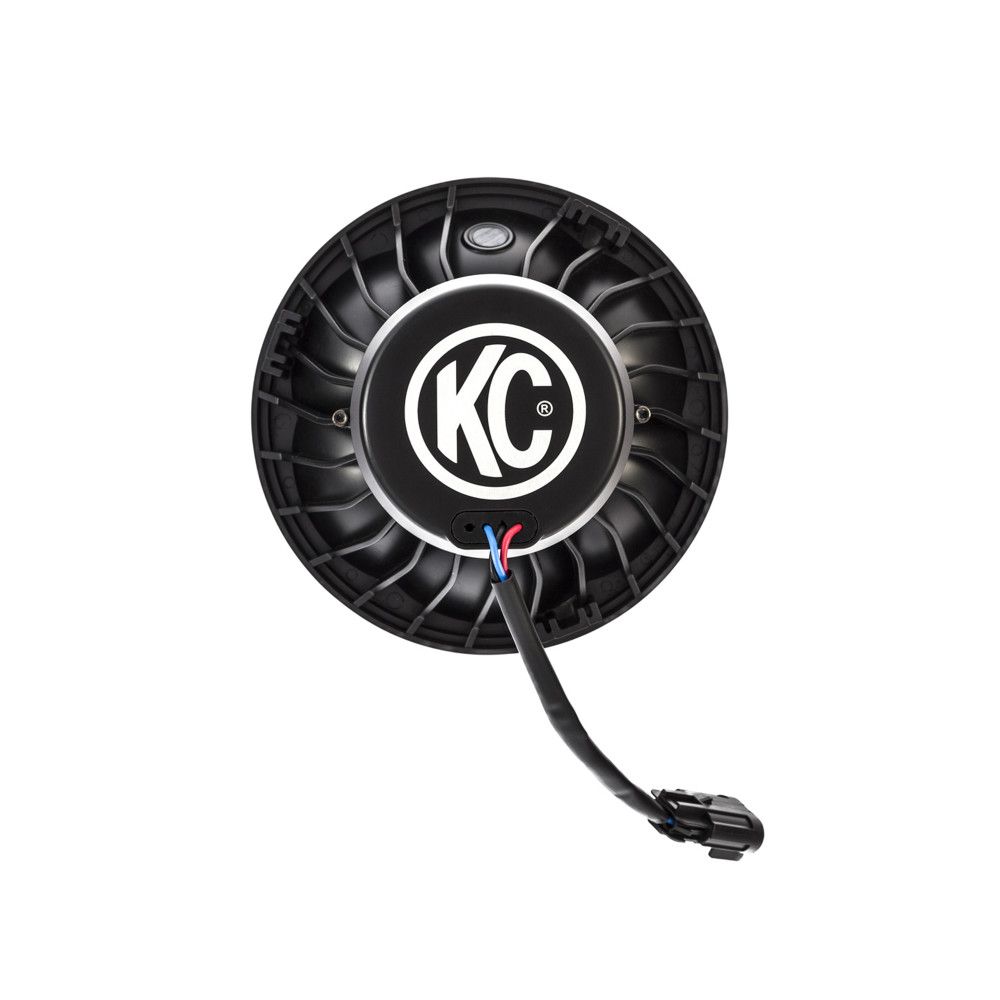

• Plug-n-Play for Jeep Wrangler JK

Note: Does not fit 17-18 Jeep Wrangler JK Rubicon/Sahara editions or Jeeps equipped with factory LED headlights

Note: Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"

LIGHT PERFORMANCE (PER LIGHT):

• Raw Lumens: Low- 2,967 lm, High- 2,575 lm, DRL- 386 lm
• Lux @ 10 Meters: Low- 400 lx, High- 700 lx
• Candela: Low- 40,000 cd, High- 70,000 cd
• Beam Distance: Low- 400m, High- 529m

SPECIFICATIONS (PER LIGHT):

• Wattage: Low- 20W, High- 30W, DRL- 1.35W
• LED Bulb: CREE: XPL/XPG2
• Color Temp: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: W - 6.96" x D - 5.098"

GRAVITY® EXTREME OUTPUT AND EFFICIENCY:

The Gravity® LED Pro 7" headlight uses KC's patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity and output.

HIGH-PERFORMANCE REFLECTOR OPTICS:

The Gravity® LED Pro 7" Headlight features KC's patented Gravity GRD technology, which is engineered to direct every lumen from powerful LEDs into usable light output.

HIGH/LOW/DRL FUNCTION:

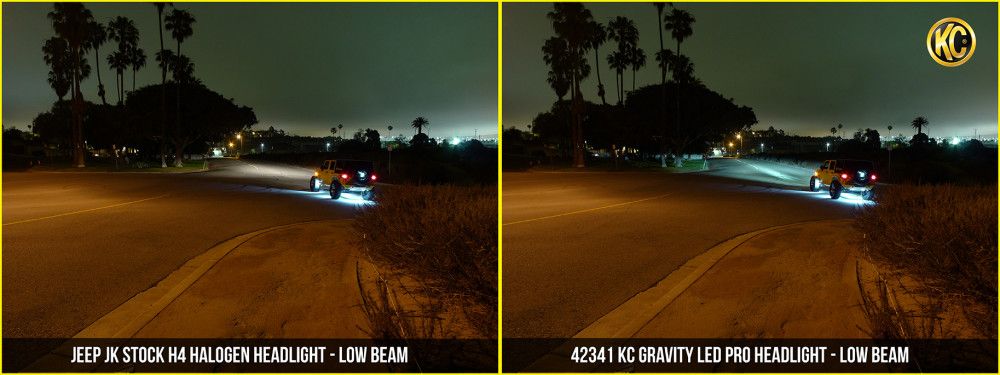

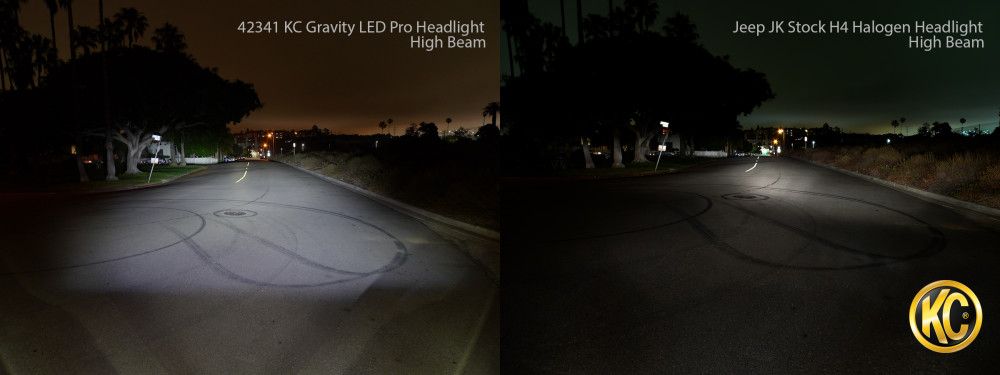

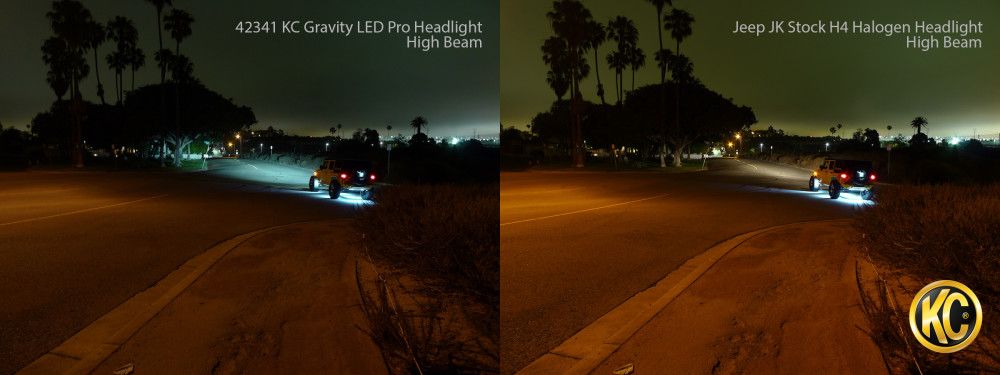

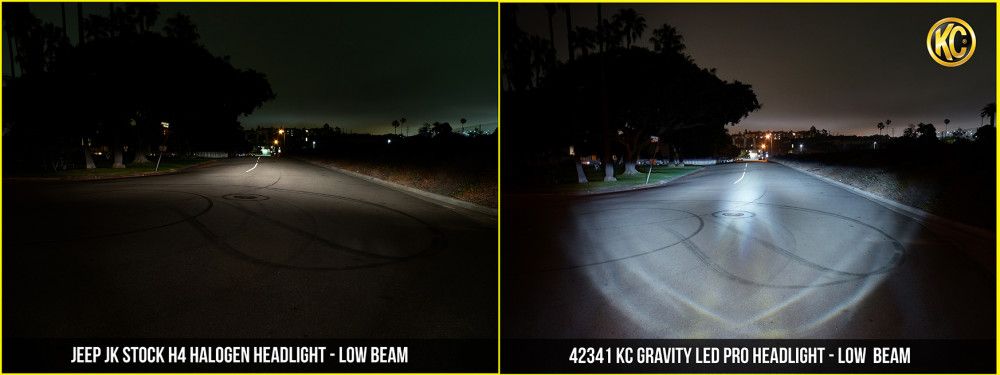

High/Low beams as well as DRL functionality come installed in this KC projector headlight to greatly improve visibility and clarity over factory Jeep headlights.

DESIGNED FOR DURABILITY:

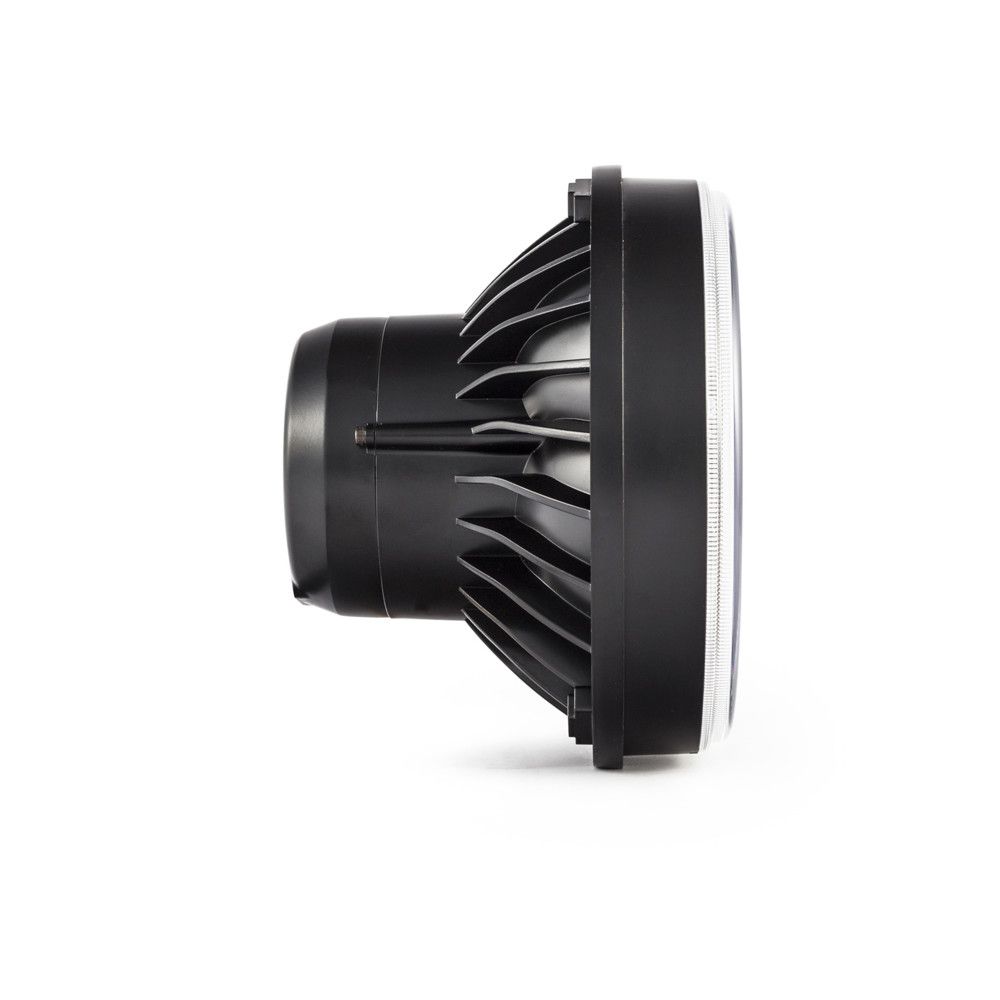

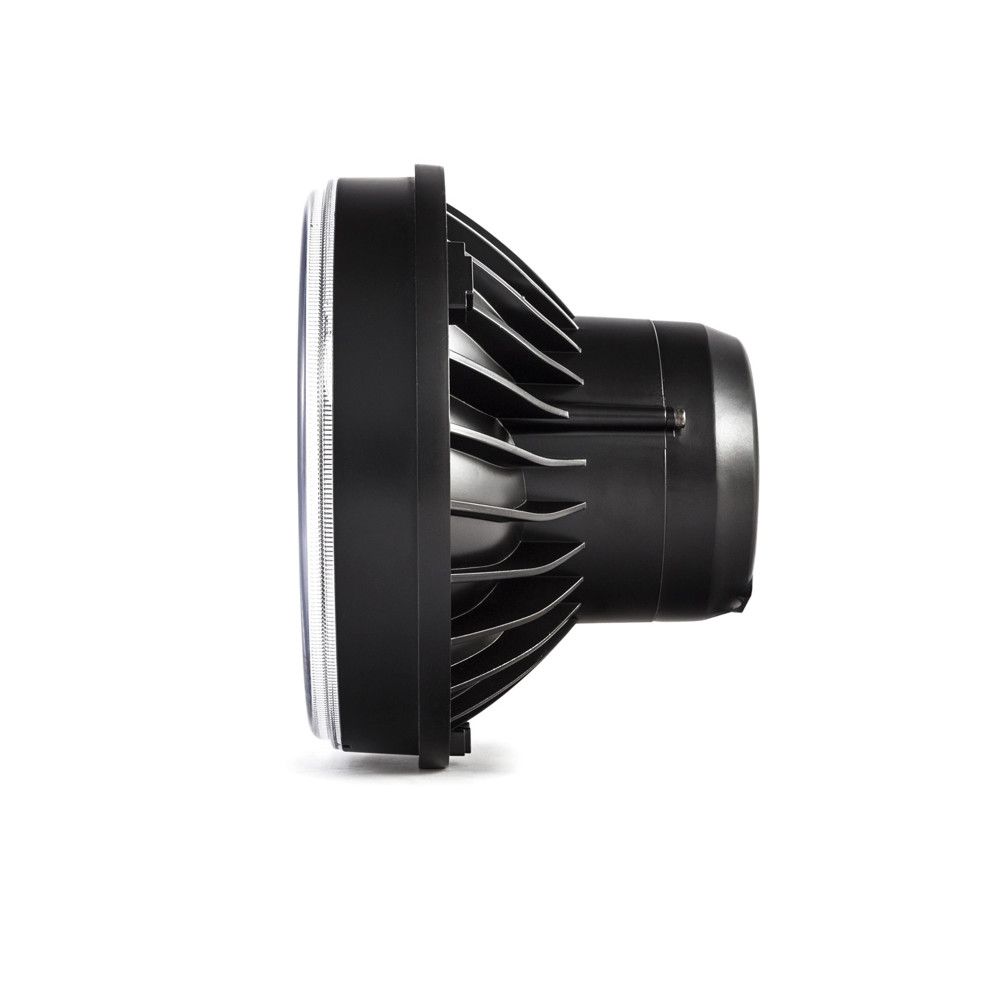

The Gravity® LED Pro 7" Headlight uses a durable die-cast housing and Polycarbonate lens, to tolerate the harshest climates and conditions.

Specs:

• Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)

• Light Technology: LED
• Location on Vehicle: Headlight

• Lumens: 2967 lm

• Beam Distance: 529

• Total Wattage: 40W

• Voltage: 9V-18V

• Amp Draw: 3.3 a

• Beam Pattern: Driving

• DOT Compliant: Yes
• SAE/ECE: Yes
• Lens Color: Clear
• Light Color: White
• Material: Aluminum Alloy

• Finish: Black

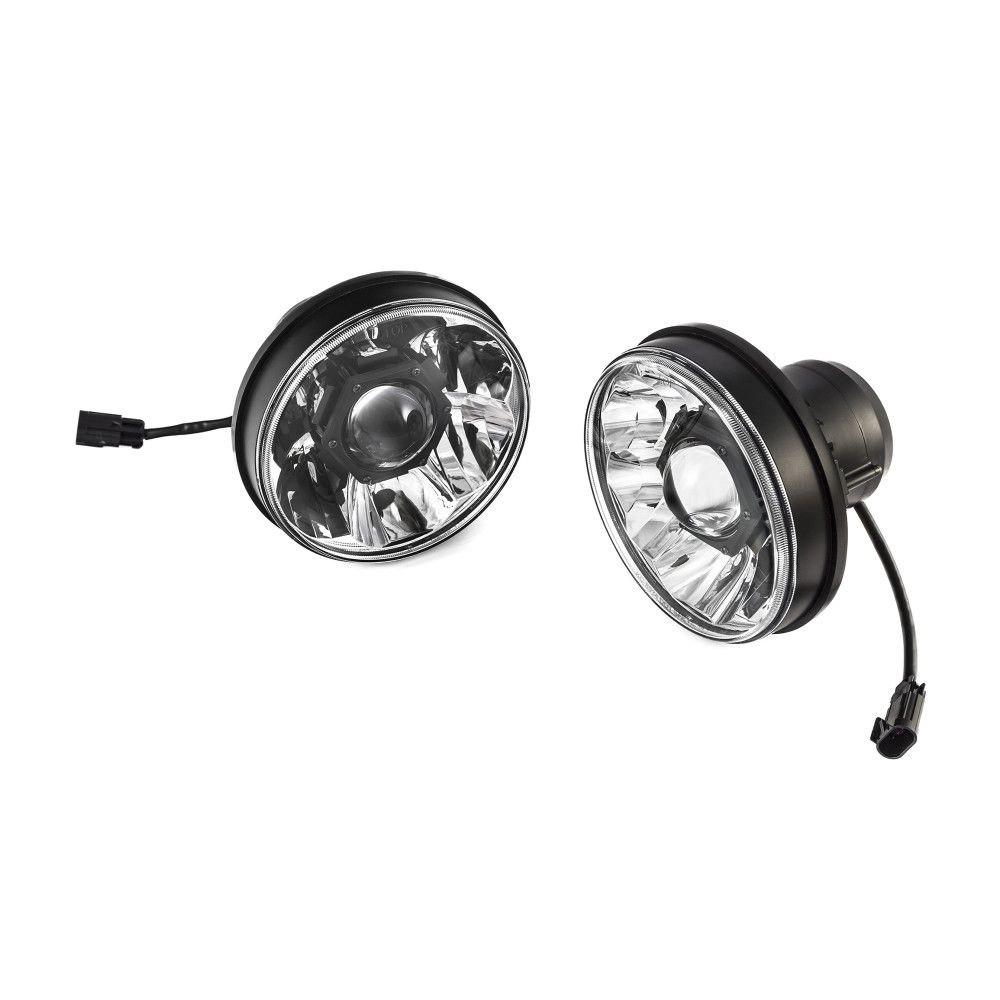

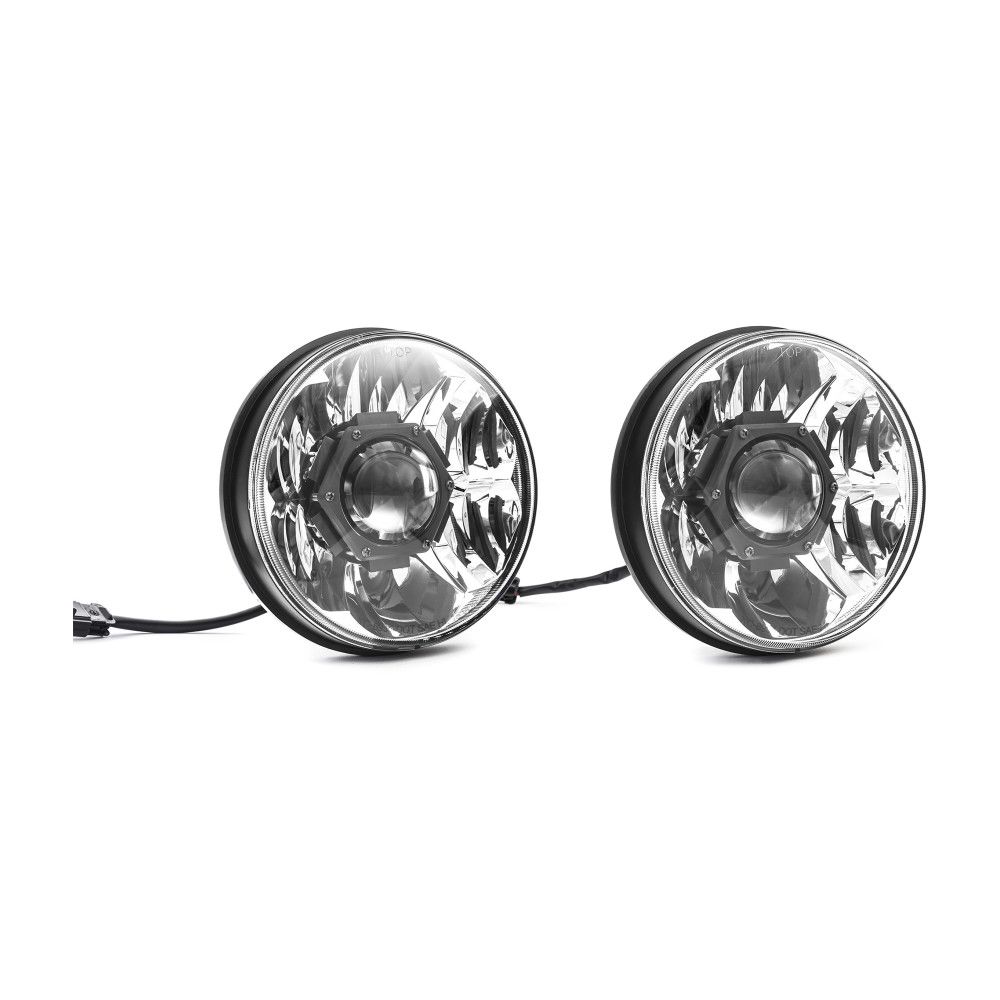

• In The Box: 2 x Gravity® LED Pro 7" DOT Jeep JK 07-18 Headlight

• Prop 65: No
• Size: 7"
