Name: KC HiLite 7" Gravity® LED DOT Headlight | Driving Beam | Pair Universal / 97-06 Jeep TJ
Brand: KC HiLiTES
SKU: 42361
Price: 749.99 USD
Availability: InStock

KC HiLite 7" Gravity® LED DOT Headlight | Driving Beam | Pair Universal / 97-06 Jeep TJ

$749.99

Shipping calculated at checkout.

In stock, ready to ship
Inventory on the way

[{"id":48390434226347,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"42361","requires_shipping":true,"taxable":true,"featured_image":{"id":61338117996715,"product_id":9129680109739,"position":1,"created_at":"2026-10-25T04:22:34-06:00","updated_at":"2026-10-25T04:22:36-06:00","alt":null,"width":1000,"height":1000,"src":"\/\/overlandxtreme.com\/cdn\/shop\/files\/42361-1.jpg?v=1792923756","variant_ids":[48390434226347]},"available":true,"name":"KC HiLite 7\" Gravity® LED DOT Headlight | Driving Beam | Pair  Universal \/ 97-06 Jeep TJ","public_title":null,"options":["Default Title"],"price":74999,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":null,"featured_media":{"alt":null,"id":52606310154411,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/overlandxtreme.com\/cdn\/shop\/files\/42361-1.jpg?v=1792923756"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Overview:

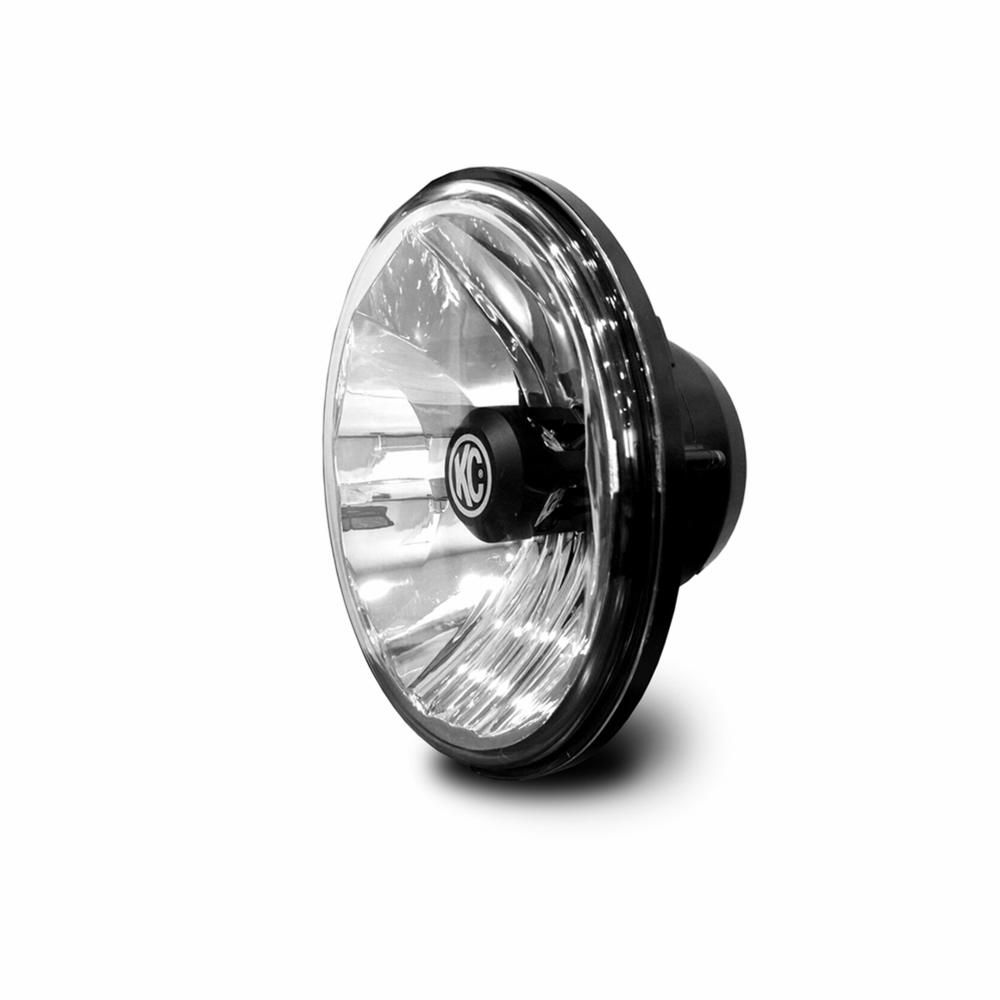

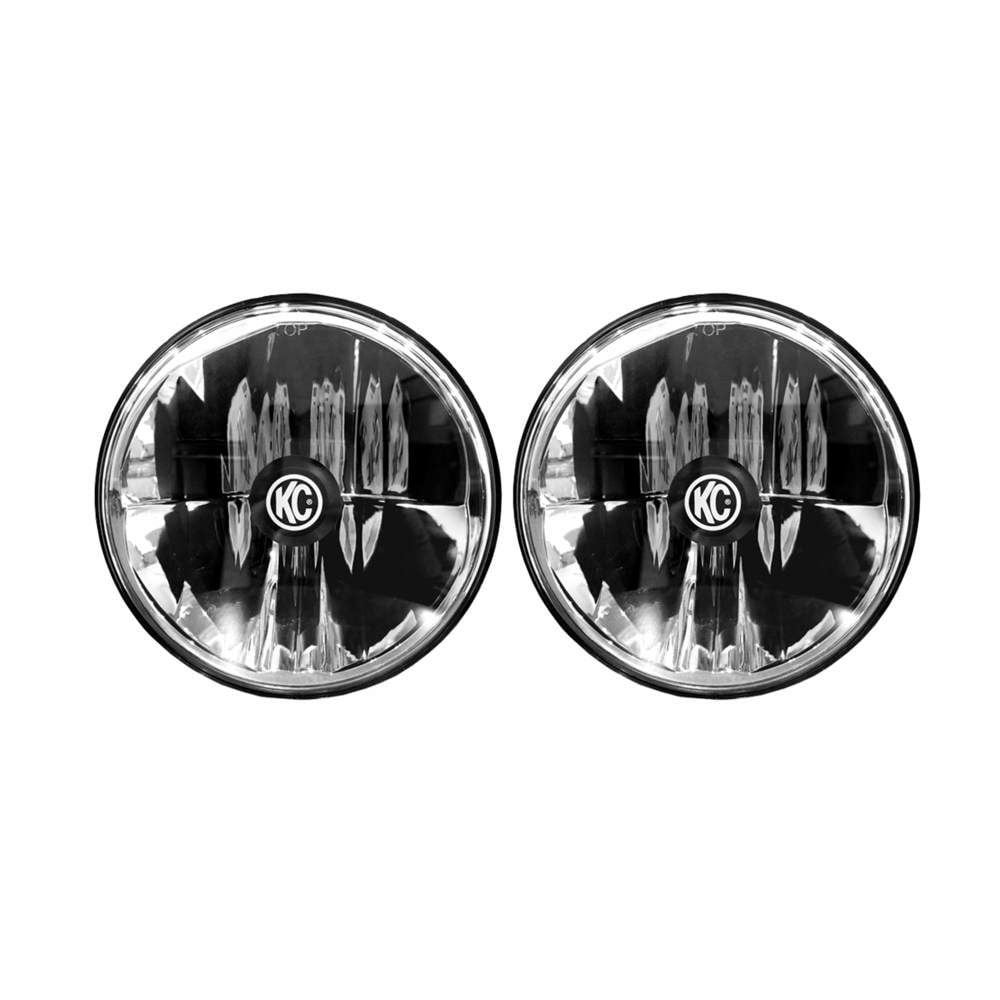

KC HiLiTES Gravity LED 7" Jeep DOT Headlight features CREE LEDs for DOT compliant Low/High beam for 97-06 Jeep TJs. Diecast aluminum housing and polycarbonate lens for optimal performance. Pair includes H4 connectors, harness, and switch.

Features:

2 x 40W Gravity® LED 7" Headlights
Hard Coated Polycarbonate Lens
Full Plug-n-Play for 97-06 Jeep TJ Wrangler/7" Universal H4
Precision Die-Cast Aluminum Housing
KC Engineered Polished Reflector Optics
DOT Compliant Low Beam, High Beam and Day Running Lamp (Transport Canada (TC) Compliant for 97-06 Jeep TJ with DRL equipped and enabled)

Light Performance (Per Light):

Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
Compliance: SAE J851 & ECE-R112
Lux @ 10 Meters: Low- 415 lx, High- 775 lx
Candela: Low- 41,500 cd, High- 77,500 cd
Beam Distance: Low- 407m, High- 557m

SPECIFICATIONS (PER LIGHT):

Wattage: Low- 18W, High- 22W
LED Bulb: CREE XHP35 HI and Nichia
Color Temperature: 5000K
Amp Draw: 1.88A
Voltage: 9V-18V
IP Rating: IP68
Product Dimensions: W - 6.96" x D - 3.72"

Parts Included in Pair Pack:

(2) Gravity® LED 7" Headlights
Capacitor Harness
Plug and Play Connectors, Jeep TJ/7" Universal H4
30 Amp LED Switch w/ Panel
Mounting Hardware

GRAVITY® EXTREME OUTPUT AND EFFICIENCY:

Gravity® LED 7" Headlights feature KC's patented Gravity® Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.

HIGH/LOW/DRL FUNCTIONS BUILT IN:

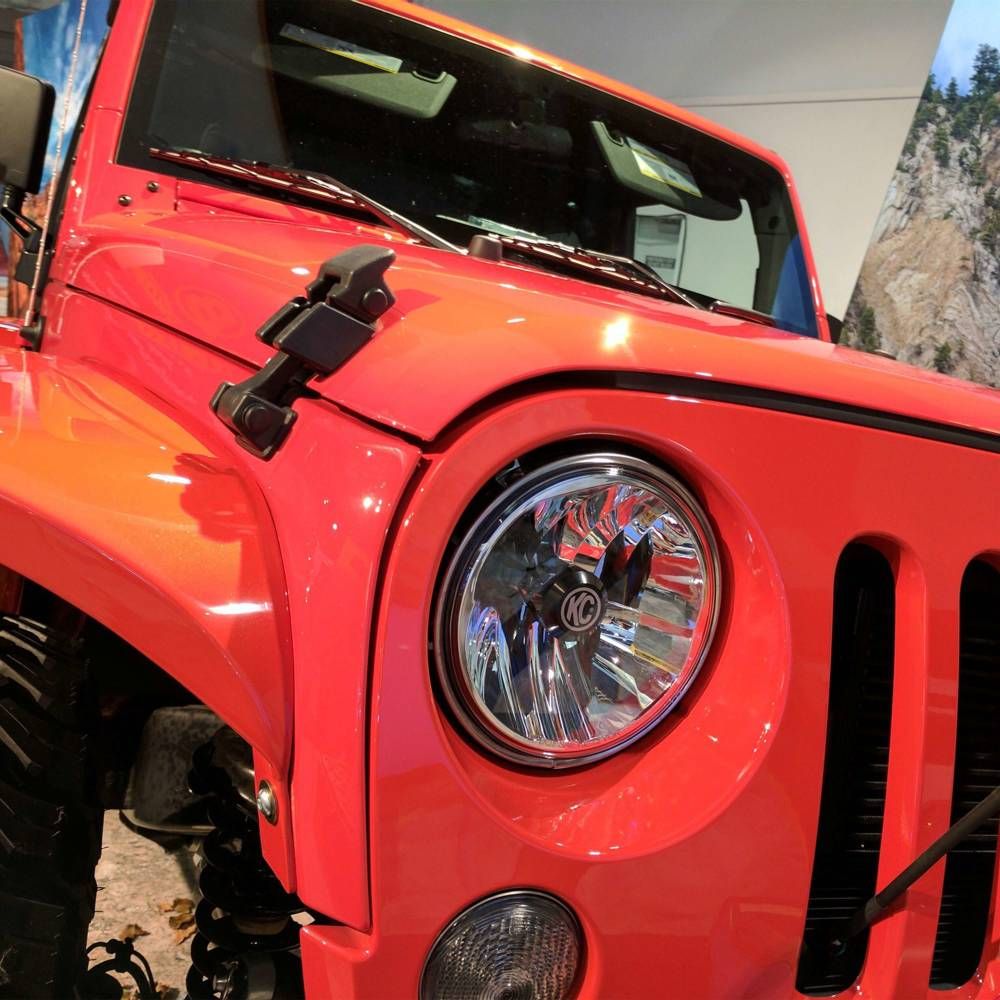

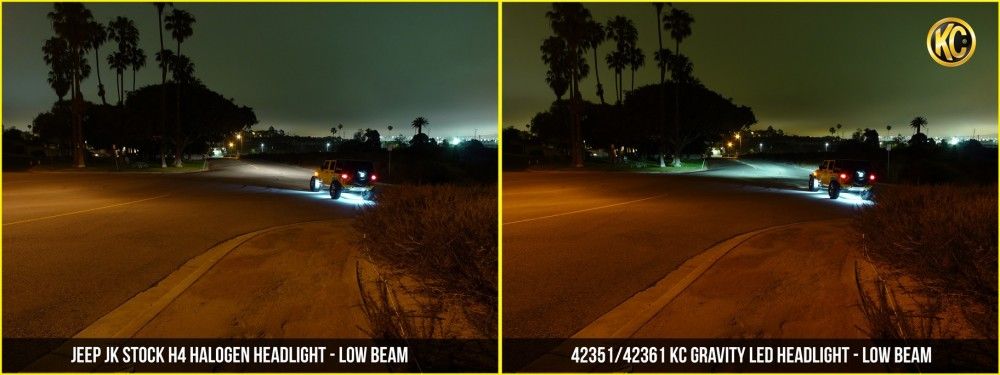

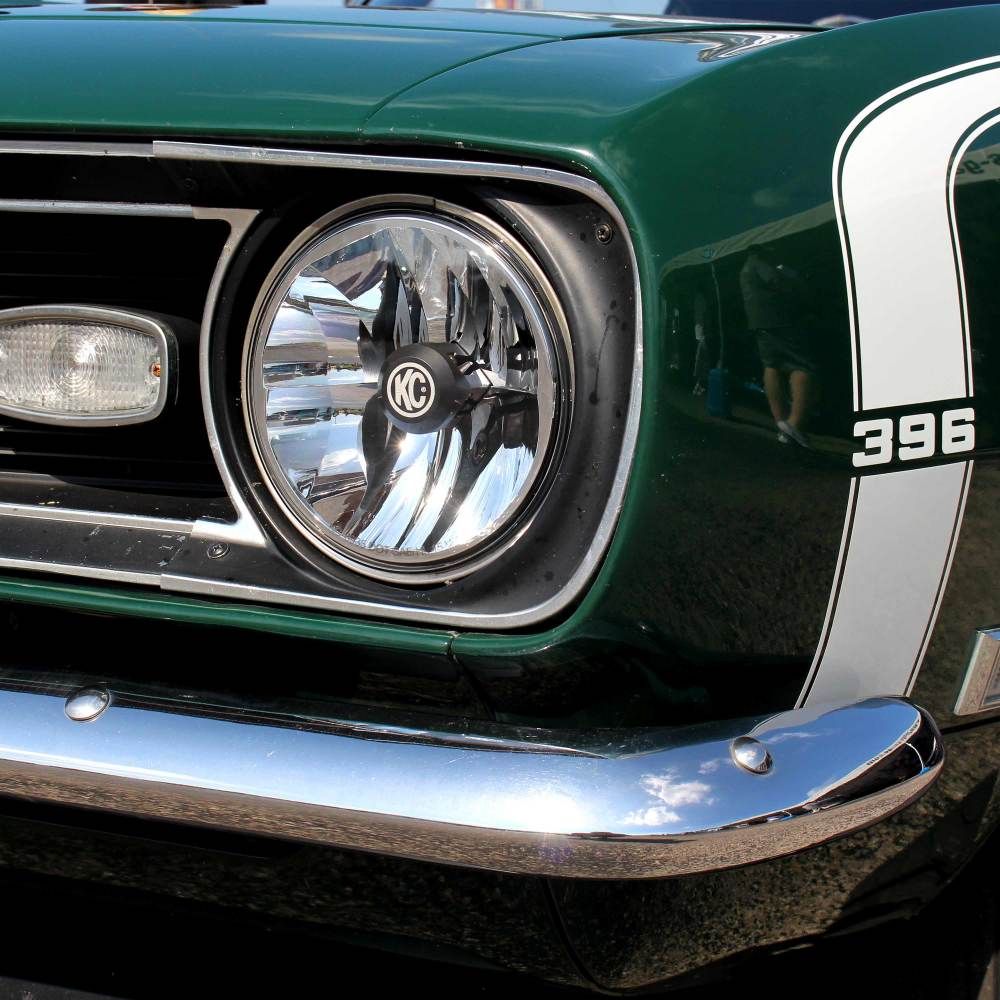

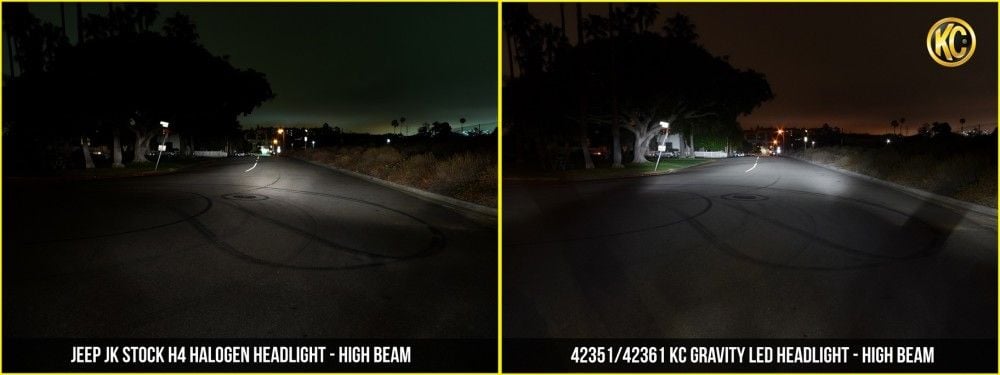

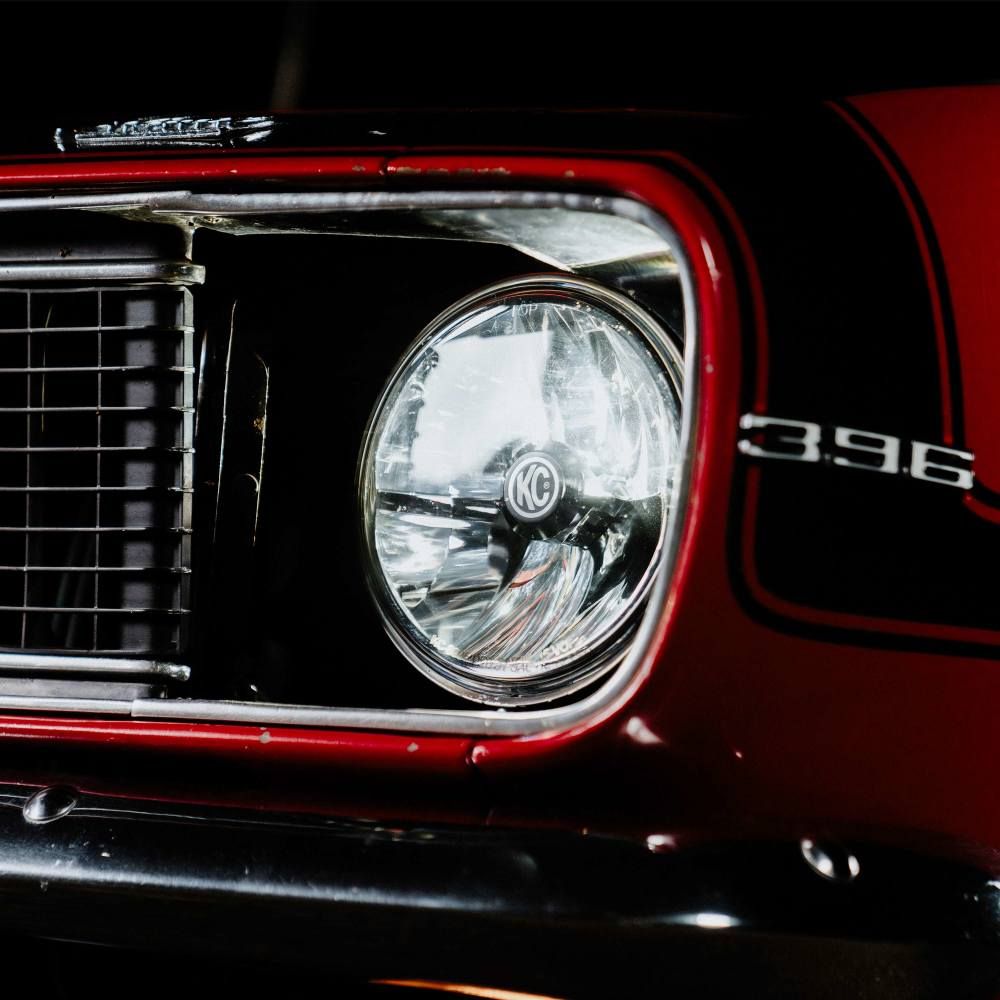

KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality. Greatly improving visibility and clarity over factory 1997-2006 Jeep Wrangler TJ headlights, as well retrofit 7" round headlight openings on classic domestic, European and JDM vehicles.

DESIGNED FOR DURABILITY:

Surrounding our Gravity® LED 7" Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

Specs:

Compliance DOT/SAE/ECE: DOT, SAE J581, ECE R112 (Driving)
Light Technology: LED
Location on Vehicle: Headlight
Lumens: 1260 lm
Beam Distance: 557 m
Total Wattage: 40W
Voltage: 9V-18V
Amp Draw: 3.3 a
Beam Pattern: Driving
DOT Compliant: Yes
SAE/ECE: Yes
Lens Color: Clear
Light Color: White
Product Dimensions: W - 6.96" x D - 3.72"
Material: Aluminum Alloy
Finish: Black
In The Box: 2 x Gravity® LED 7" DOT Jeep TJ 97-06/Universal H4 Headlight
Prop 65: No
Size: 7"
