$605.95
/
Shipping calculated at checkout.
Lens Color
Beam Pattern
  • In stock, ready to ship
  • Inventory on the way
HIGH PERFORMANCE WITH A SLEEK DESIGN:

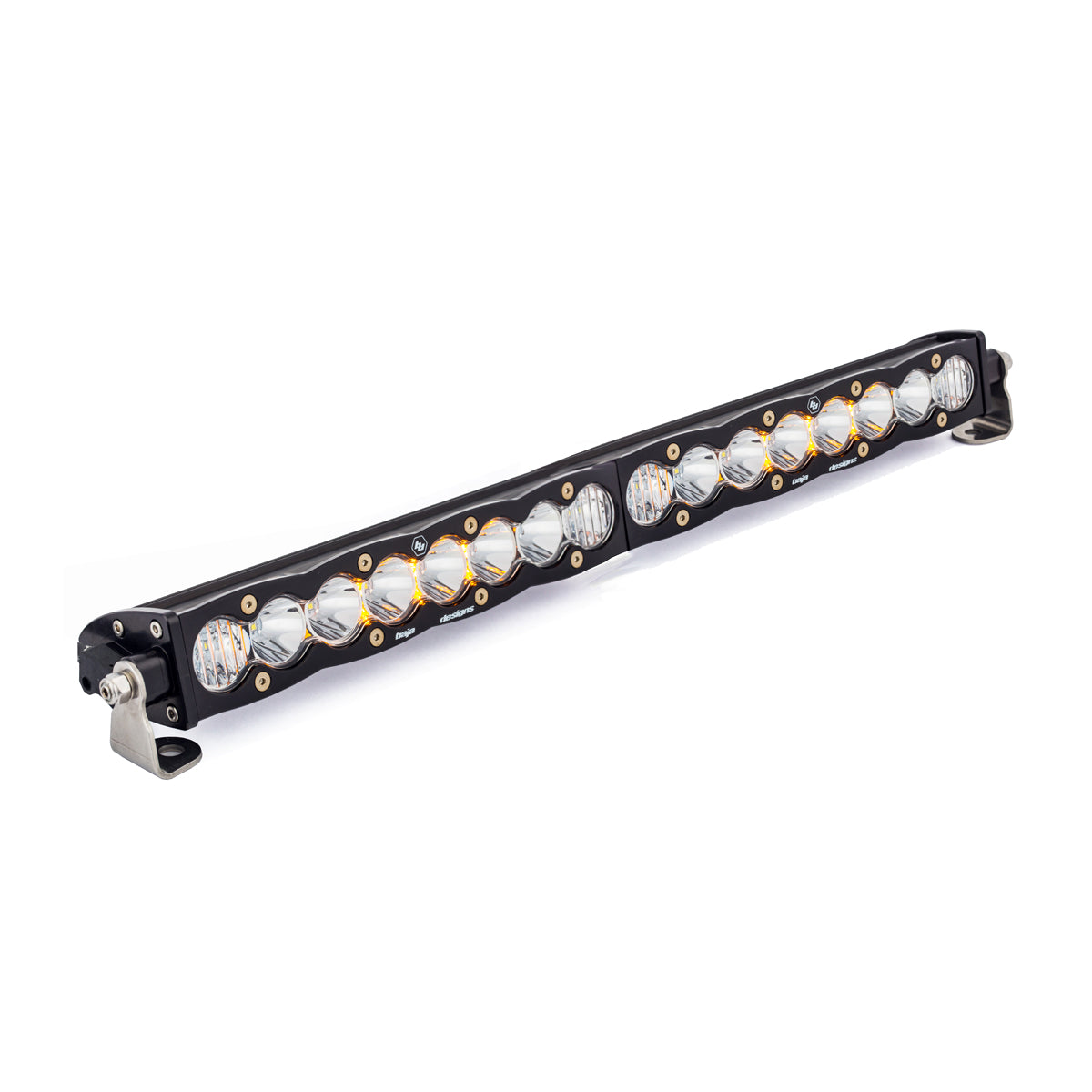

Baja Designs 20" S8 Series LED Light bar is 12,700 lumens of pure power, low amp draw of 8.00 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design.

WHAT'S INCLUDED:

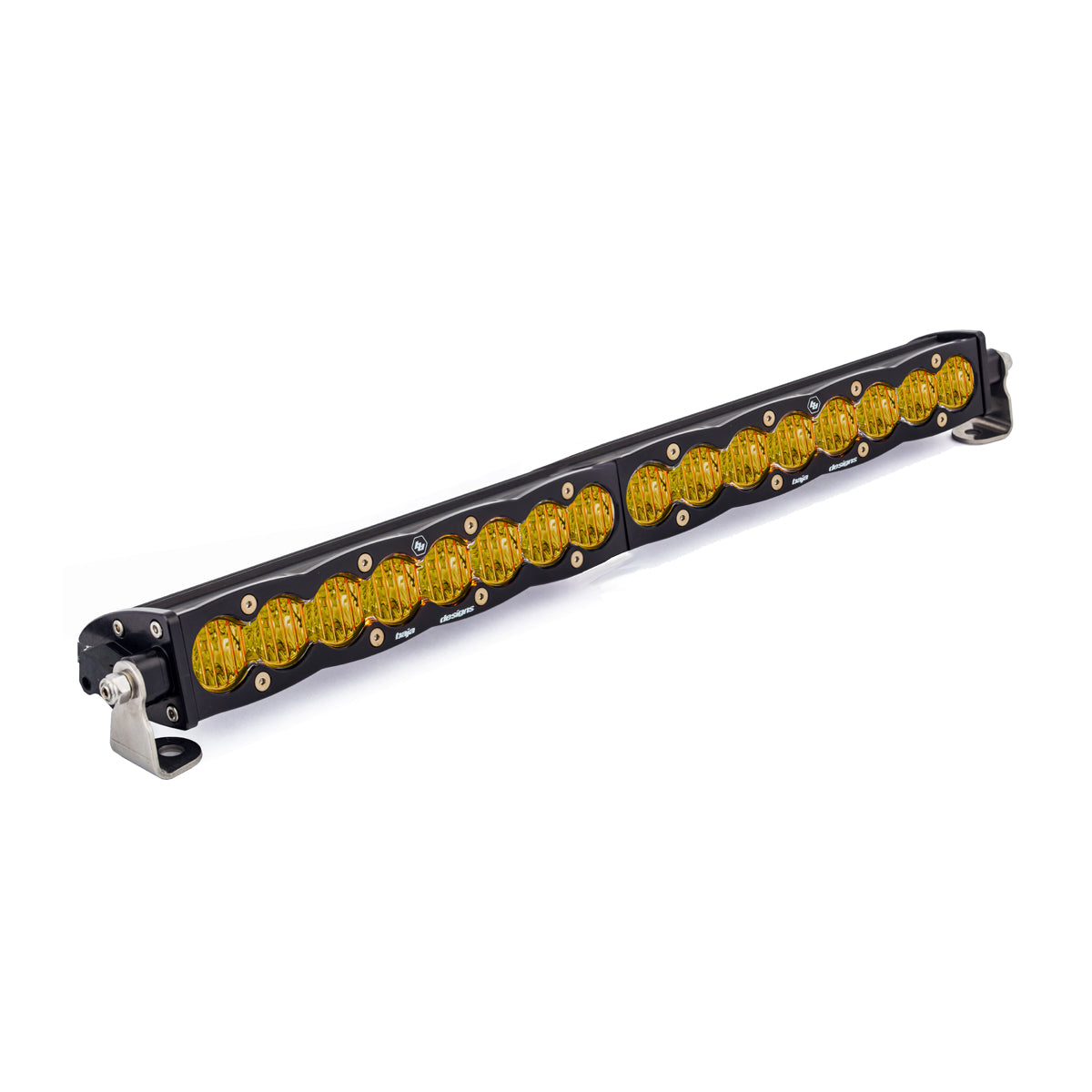

  • S8 20” LED Light Bar (Optional Amber or Clear Lens)
  • Mounting Brackets
SPECS:
  • Lumens: 12,700 Utilizing 16 Cree LEDs
  • Wattage/Amps: 120W / 8.00A
  • Dimensions: 20” x 3” x 1.6”
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
TECH NOTES:

Please note that this light does NOT include a harness and the applicable harness to this light is 640122

BAJA DESIGNS BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
  • High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
