23+ Ford F250/F350 sPOD HD BantamX Power Management Kit

*** PRE-ORDER ***

PLACE THE ORDER NOW TO GET A KIT ALLOCATED TO YOU. ETA FOR PRODUCT RELEASE IS 4/22 AND WE WILL SHIP PRE-ORDERS AS SOON AS WE HAVE THE KITS!

take control of your accessories:

sPOD BantamX HD smart panel truck-specific power management system for the 2023-on Ford F-250/350 Super Duty has been engineered to take control, giving you that factory appearance and installation to your sPOD control panels.

Designed specifically to integrate the sPOD control panel into your cabin, providing a safe place to access all your controls within arm’s reach. With 8 circuits of power, each at 30A per channel, 100A total, the connect-and-go systems have been designed to fit seamlessly into your vehicle to fit your needs. The BantamX allows system scalability with the expansion of up to 32 channels controlled by one controller.

Each system is equipped with built-in sPODConnect Bluetooth technology, allowing users to program from any iOS or Android device via the sPOD app. With a wide range of programming options available, including output dimming, strobing, flashing, master-slave functions, memory, auto power-up, momentary settings, switch linking, input control, and more. Backed by a 5-year* manufacturer warranty, sPOD allows simple and safe power management that is worry-free, allowing you to take control.

Effortless Control at Your Fingertips:

The sPOD HD smart panel brings your accessory controls to your fingertips. It's the ultimate in convenience and safety.

Seamless Integration:

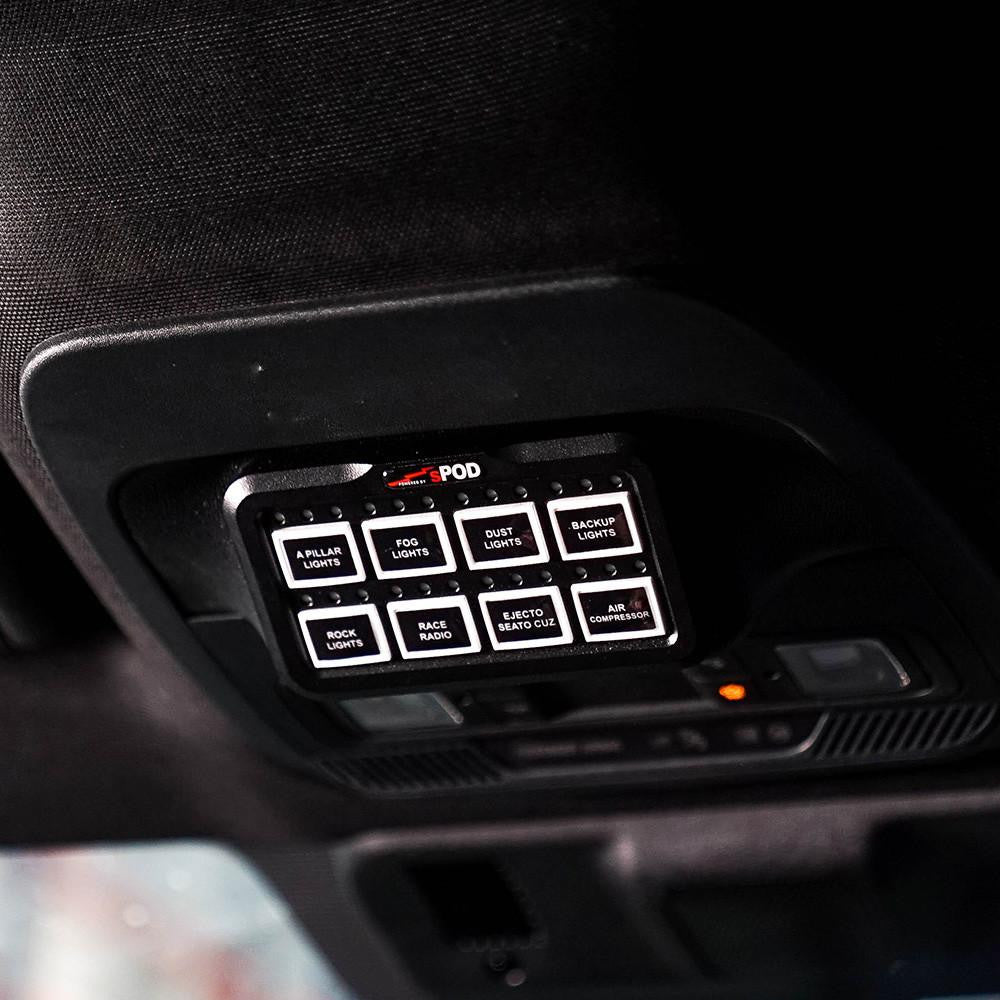

The sPOD Touchscreen controller is ingeniously designed to replace the sunglass holder within the upper console, ensuring a perfect fit and finish. No more bulky, inconvenient control panels – it's all right there where you need it.

Programmable Modes:

Have access to advanced features such as strobe, dimming, flash, momentary, and switch linking.

Adjustable Back-lit RGB color:

Customize your HD smart panel controller backlight.

Easy Installation:

Connecting your accessories is a breeze. A single ethernet cable runs discreetly from the BantamX unit to the Touchscreen in your cab. There is no need for relays, wiring looms, or circuit fuses, making it one of the simplest solid-state power management systems on the market.

Built-in Battery Protection:

The sPOD BantamX Touchscreen is not only convenient but also safe. It features a 16-position terminal block with our integrated LVCO low-voltage cutoff battery protection that monitors and protects, ensuring your vehicle's electrical system remains reliable and secure.

Input Control:

Automate functions for all switch circuits - sPOD’s system gives customers full control over their accessories, allowing them to monitor and adjust settings as required by integrating factory wiring to take control a step further.

uLINK™ System Scalability:

Allows for expansion of up to 32 channels by linking additional BantamX power control modules, all controlled by one controller.

Multi-Controller Ready:

The BantamX has 2 controller ports built in, allowing for 2 different controller options per system.

Specs for the BantamX:

• 8 circuits rated at 30 amps at 12.5 VDC per circuit, 100A total
• 16-position terminal block
• Integrated low voltage cutoff battery protection w/ optional override
• 100 amp in-line fuse
• Operates on 12 VDC or 24 VDC
• Built in Bluetooth capabilities for remote app control
• Input control automates functions for all switch circuits
• System Scalability allows the expansion of up to 32 channels, controlled by one controller
• 2 controller port compatible
• Power saving deep sleep mode

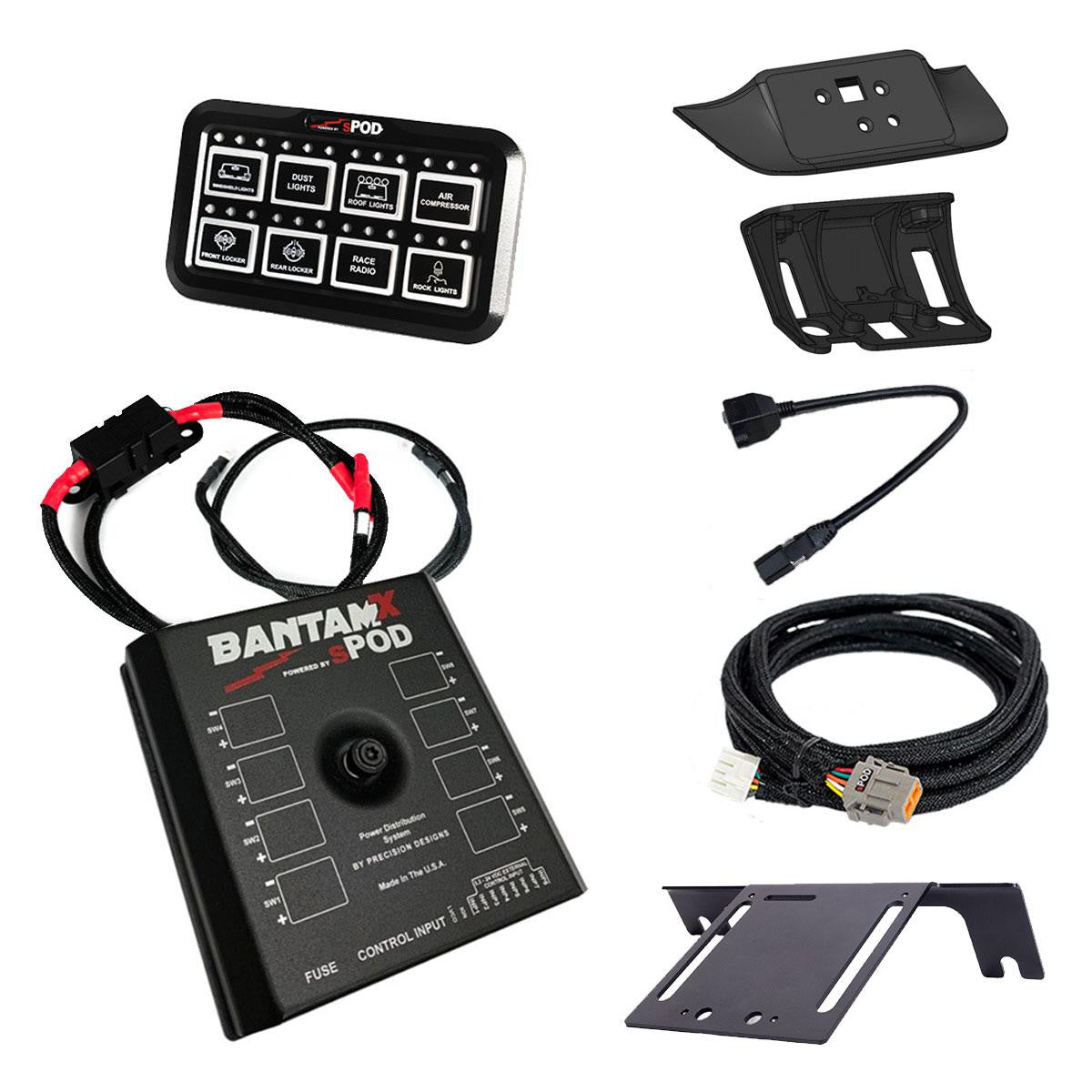

Parts Included:

• (1x) BantamX System
• (1x) 36” Battery Cable Set
• (1x) HD Switch Panel
• (1x) Ethernet Cable
• (1x) Mounting Bracket
• All necessary hardware
