Baja Designs - '17-19 Ford F250/350 7 XL Linkable LED Light Kit

$2,004.95
/
Shipping calculated at checkout.
Wiring Option
  • In stock, ready to ship
  • Inventory on the way
A LIGHT CUSTOMIZABLE TO YOUR NEEDS:

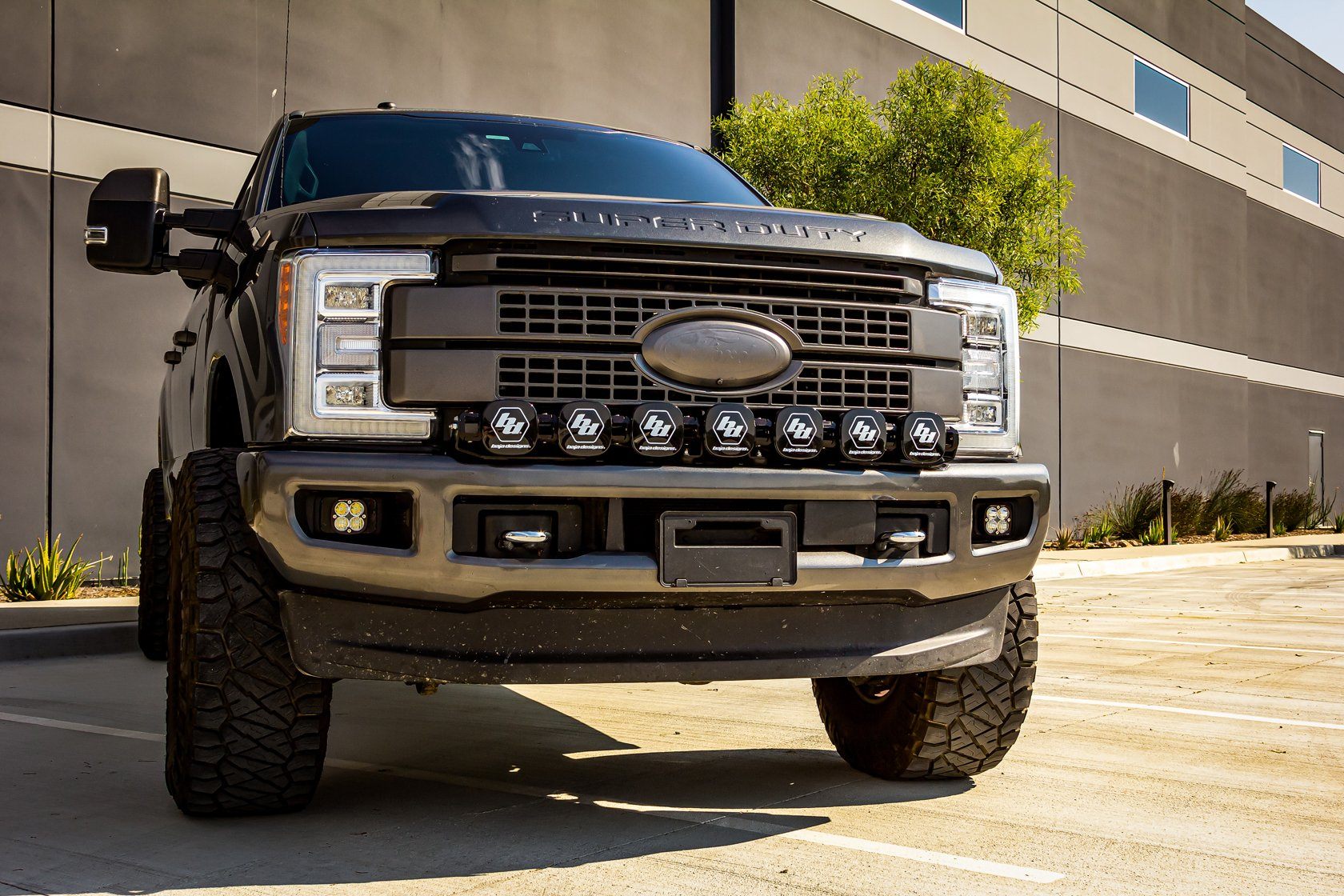

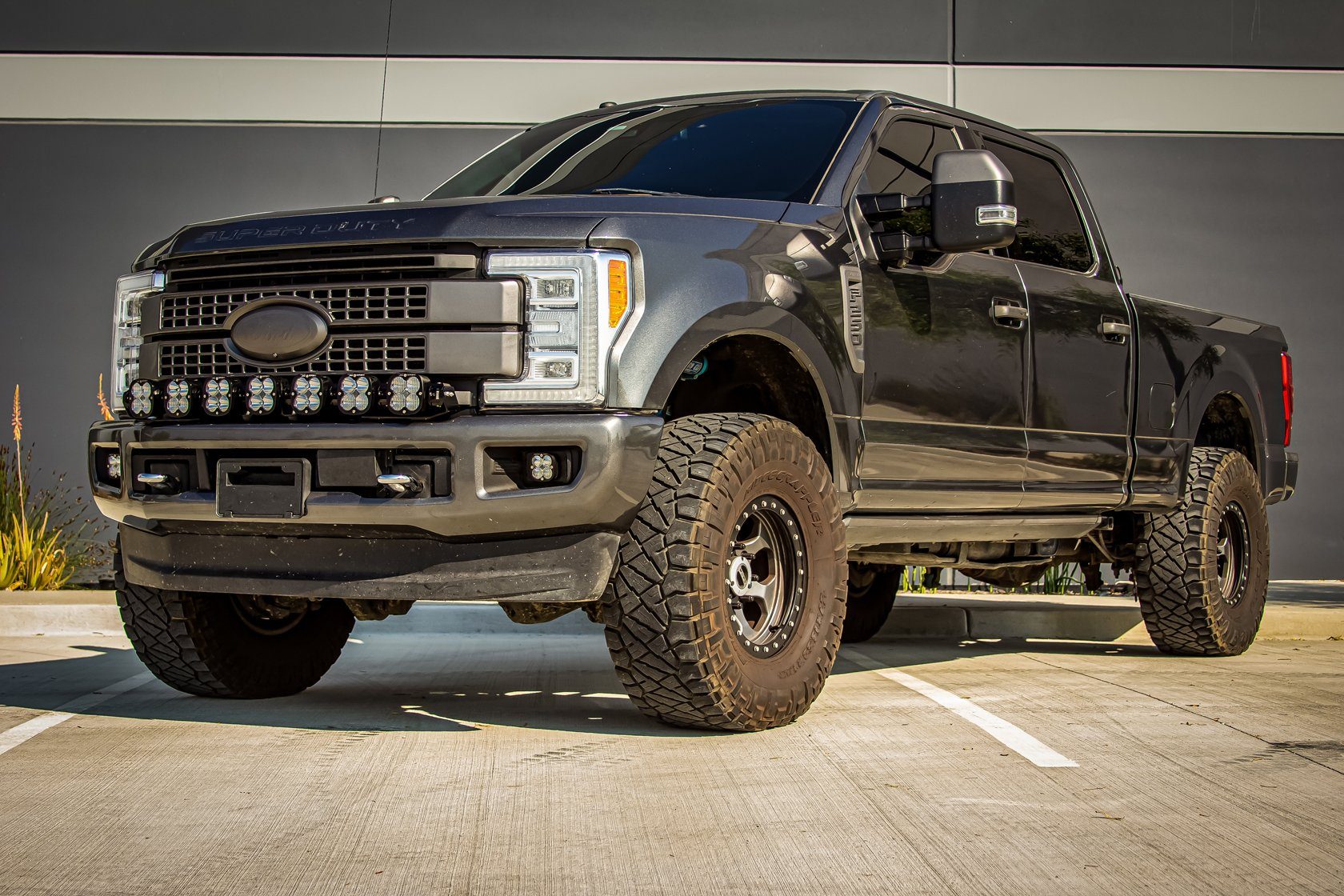

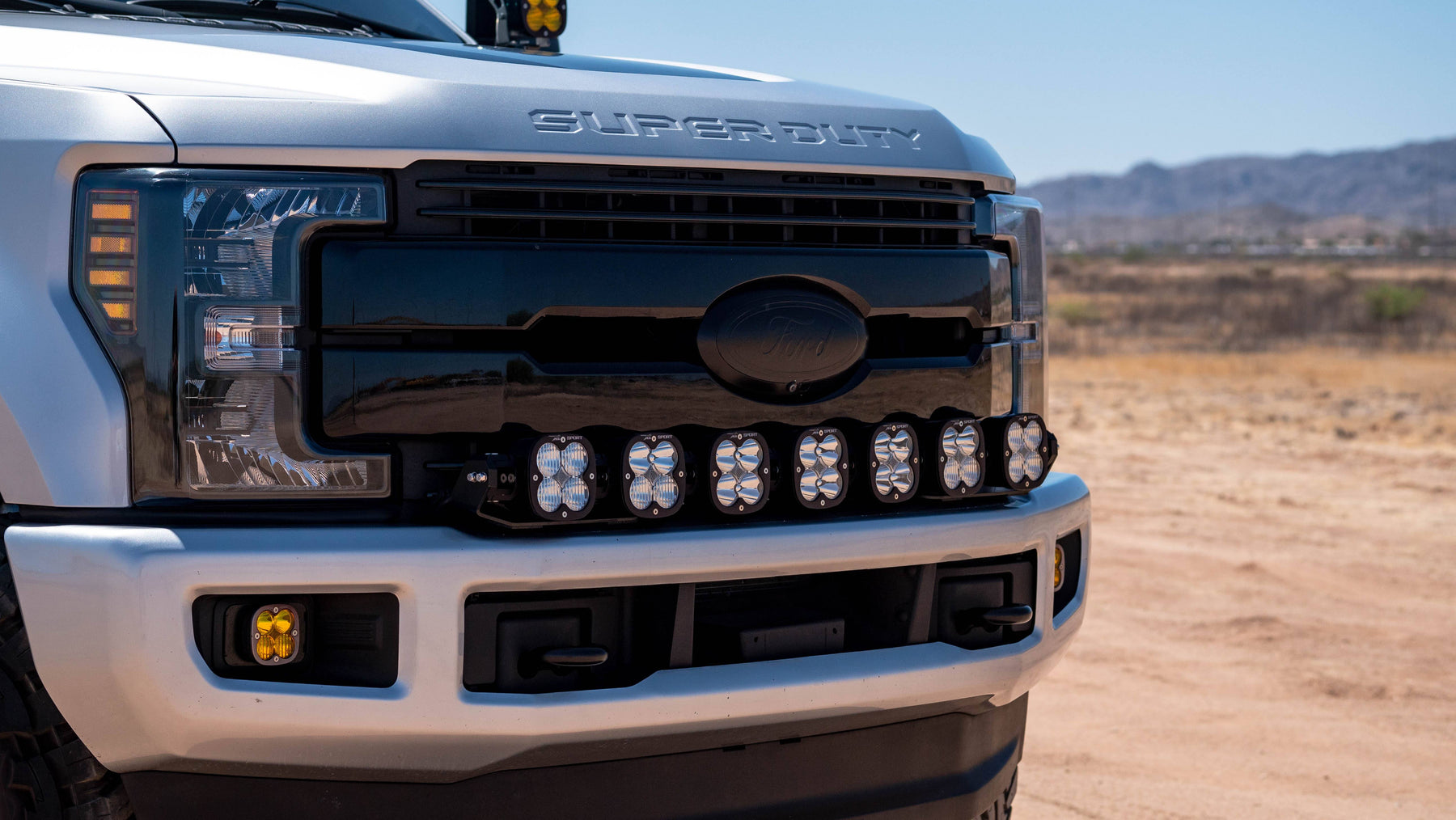

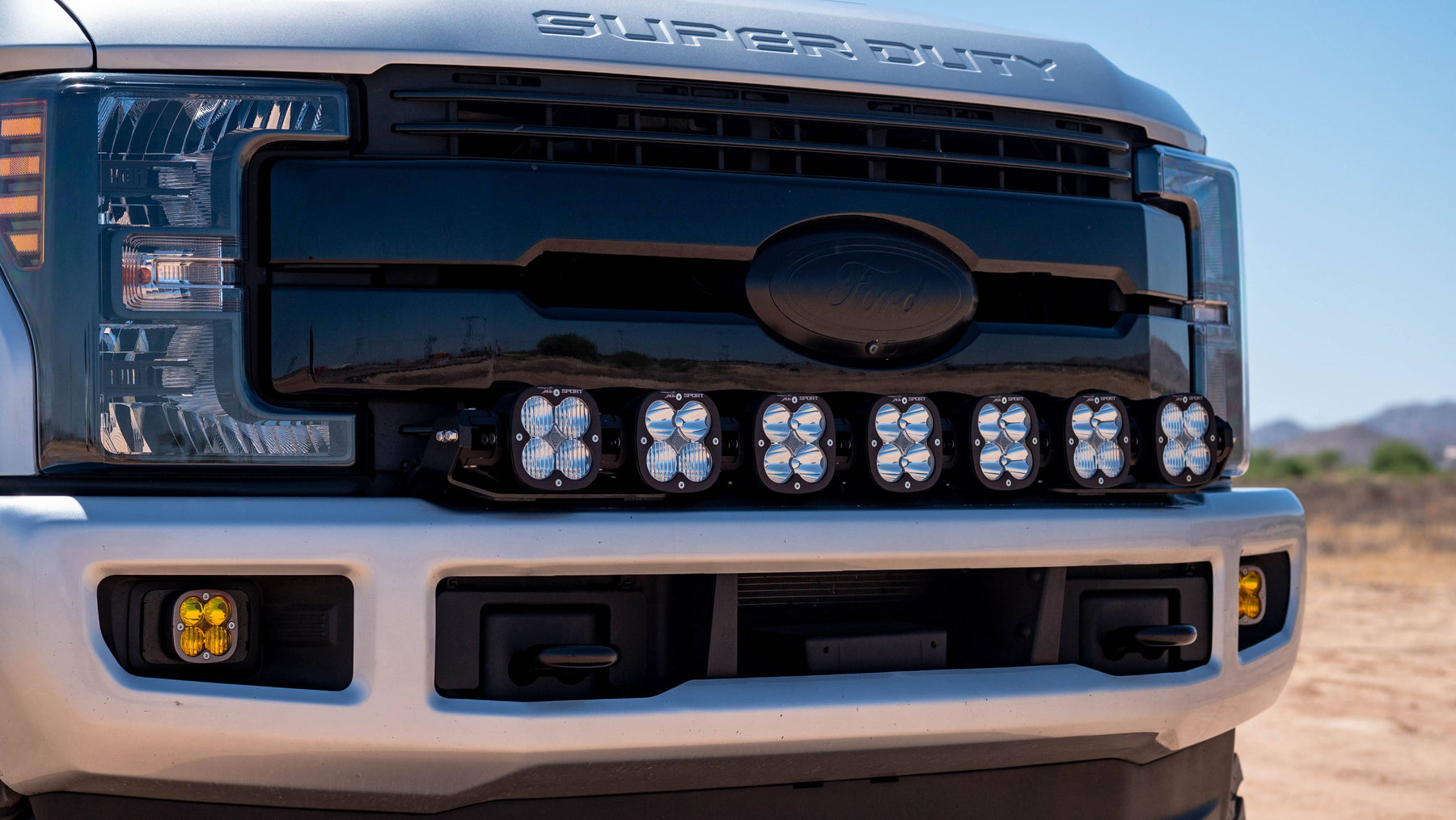

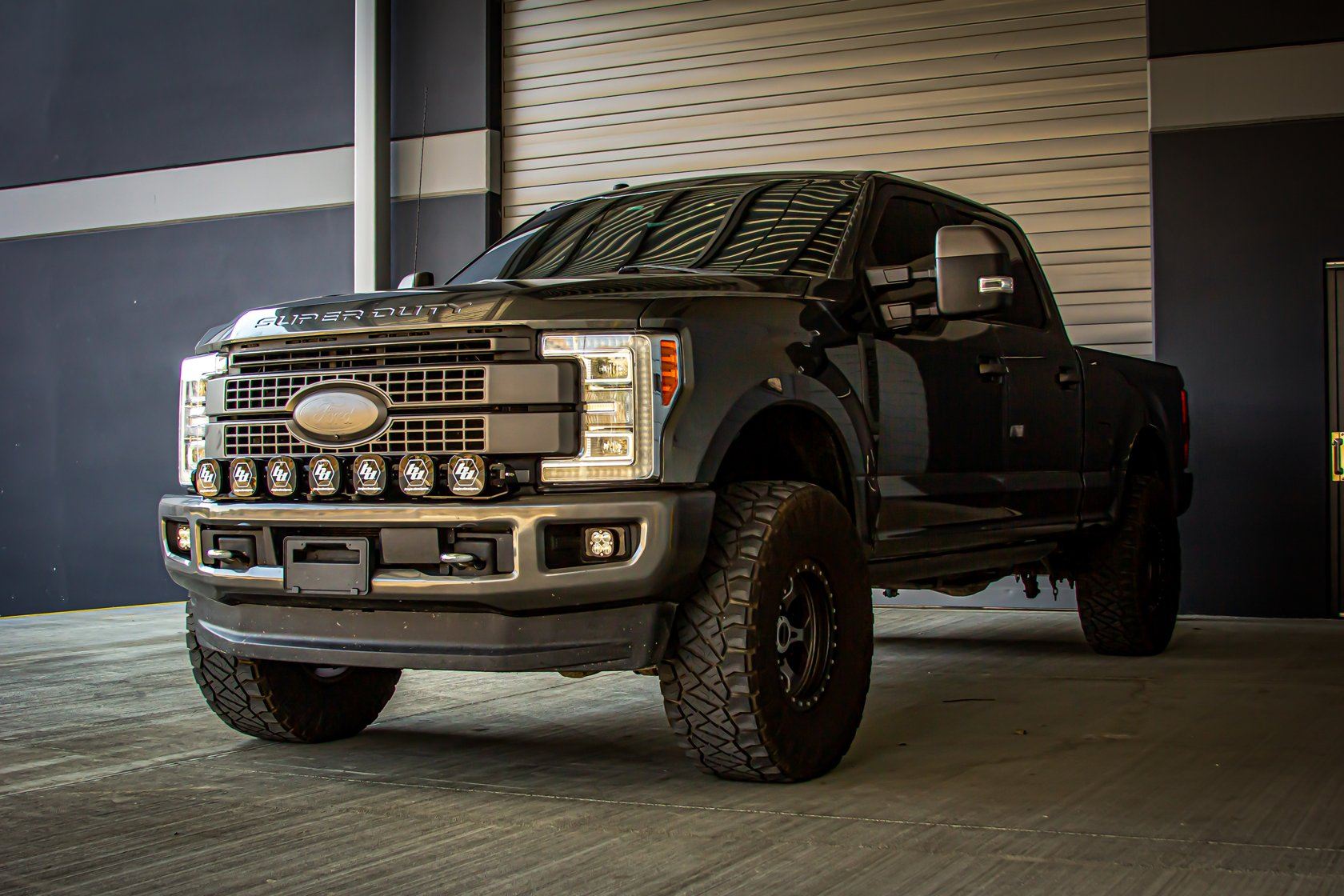

Baja Design's XL Linkable Kit for the 2017-2019 Ford F250/350 (Superduty) was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

This aftermarket LED light kit includes 7 XL Sports LED lights, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

FITMENT:

2017-2019 Ford F250/F350 (Superduty)

SPECS:
  • Lumens: 22,050 Utilizing 28 LEDs
  • Wattage/Amps: 182W / 14A
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

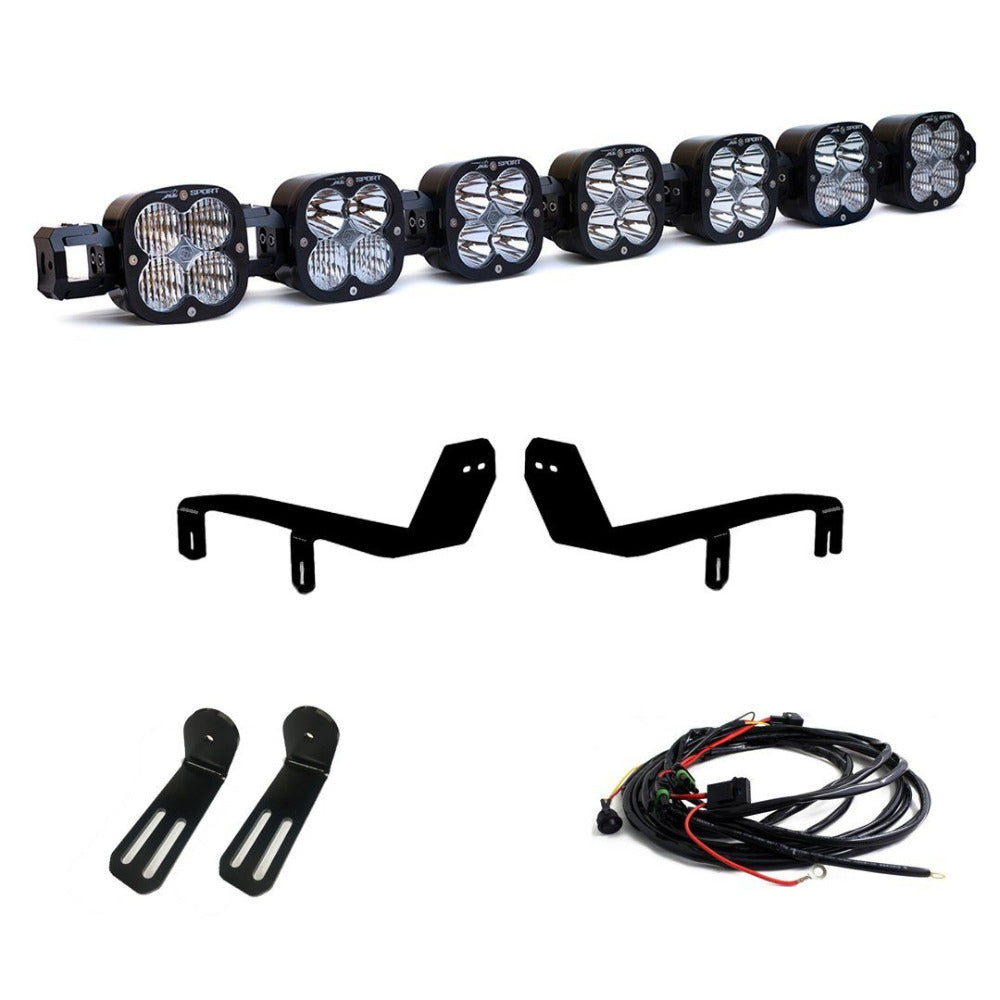

WHAT'S INCLUDED:
  • x3 XL Sport Spot LED Light
  • x2 XL Sport Driving/Combo LED Light
  • x2 XL Sport Wide Cornering LED Light
  • x7 XL Sport Rock Guards
  • Support Kit
  • Standard Harness
  • Super Duty Brackets
WIRING OPTIONS:

In the product options you can select what style of wiring option you want either NON-UPFITTER or UP-FITTER

  • TOGGLE SWITCH/NON-UPFITTER OPTION: The included wiring harness is a rocker switch style that can be activated inside the cab of the vehicle.
    SKU: 447744

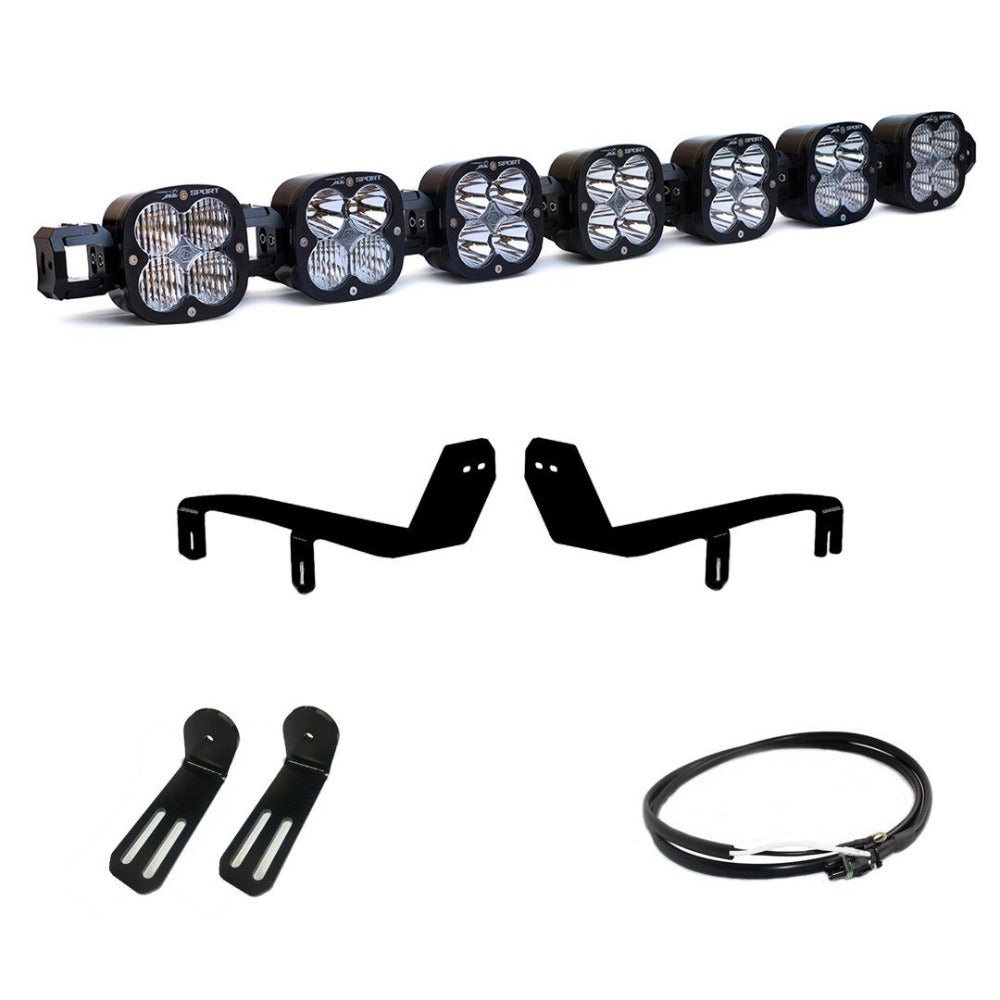

  • UPFITTER OPTION: The included wiring harness is an upfitter style designed to be tied into either your vehicles factor upfitter system or a Switch-Pros unit.
    SKU: 447744UP
BEAM PATTERNS:
  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
  • High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
